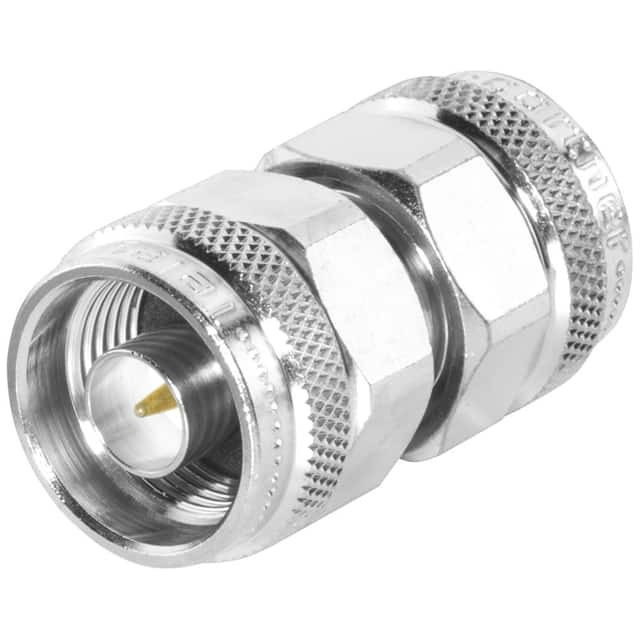

6GK57980CP001AA0 Siemens
Same model may have multiple batches, images only for reference.

6GK57980CP001AA0

Part No 6GK57980CP001AA0
Manufacturer Siemens
Catalog Coaxial Connectors (RF)
Description CONNECTOR, MALE/MALE, CLUTCH ELE
Datasheet
6GK57980CP001AA0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Adapters
Mfr Siemens
Package Box
Product Status Active
Adapter Type Plug to Plug
Conversion Type Same Series
Adapter Series N to N
Center Gender Male to Male
Convert From (Adapter End) HN Plug, Male Pin
Convert To (Adapter End) HN Plug, Male Pin
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Threaded, Threaded
Frequency - Max 6 GHz
Ingress Protection IP68 - Dust Tight, Waterproof
Insertion Loss 0.10dB
Temperature Range - Operating -40°C ~ 70°C
Base Product Number 6GK5798
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1041779-6GK57980CP001AA0
Ultra Librarian 3D Model Ultra Librarian 6GK57980CP001AA0 CAD Model

Description

The Siemens Coaxial Connector Adapter, with the Win Source Part Number 1041779-6GK57980CP001AA0, is a versatile component for RF applications.

  • Conversion: HN Plug to N Plug (both male pins)
  • Impedance: 50Ohm
  • Maximum frequency: 6 GHz
  • Insertion loss: 0.10dB
  • IP rating: IP68
  • Temperature range: -40°C to 70°C
  • Win Source Part Number: 1041779-6GK57980CP001AA0
