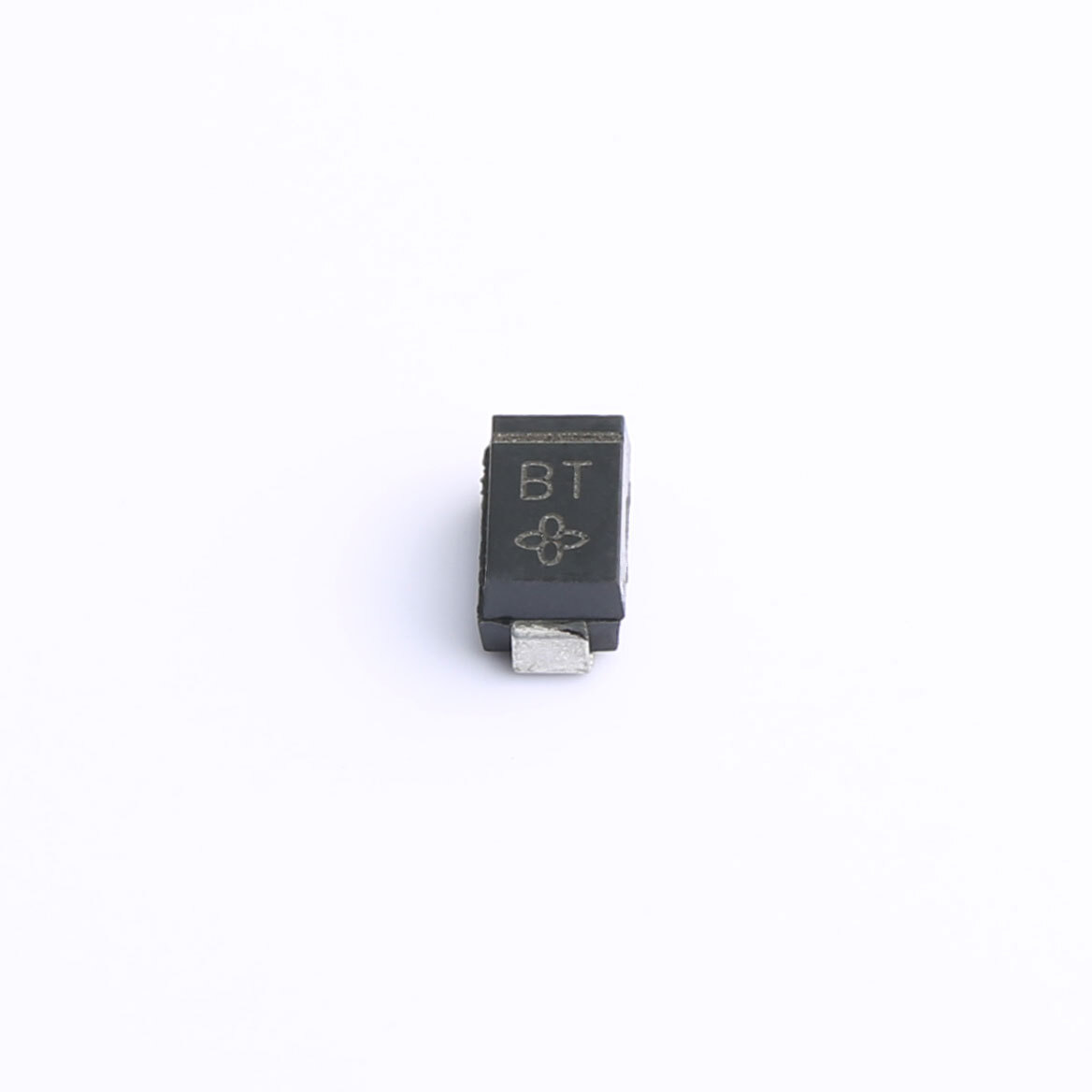

Same model may have multiple batches, images only for reference.

SMAJ18A

Name: SMAJ18A
Brand: ShenZhen SlkorMicro Semicon Co. Ltd
SKU: WS1329881
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMAJ18A
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	TVS - Diodes
Description	18V 400W 20V 29.2V 13.7A SMA(DO-214AC)
Datasheet	SMAJ18A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1329881-SMAJ18A
Package	Tape & Reel (TR)
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	18V (Max)
Voltage - Breakdown (Min)	21.05V
Voltage - Clamping (Max) @ Ipp	29.2V
Current - Peak Pulse (10/1000µs)	13.7A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Operating Temperature	-65°C ~ 150°C (TA)
Grade	-
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC
Package	Strip
Voltage - Reverse Standoff (Typ)	18V
Voltage - Breakdown (Min)	20V
Operating Temperature	-55°C ~ 150°C
Package / Case	DO-214AC (SMA)
Operating Temperature	-55°C ~ 150°C (TJ)
Supplier Device Package	DO-214AC (SMA)
Package	Tape & Reel (TR);Cut Tape (CT)
Operating Temperature	-65°C ~ 150°C (TJ)
Ultra Librarian 3D Model	Ultra Librarian SMAJ18A CAD Model
