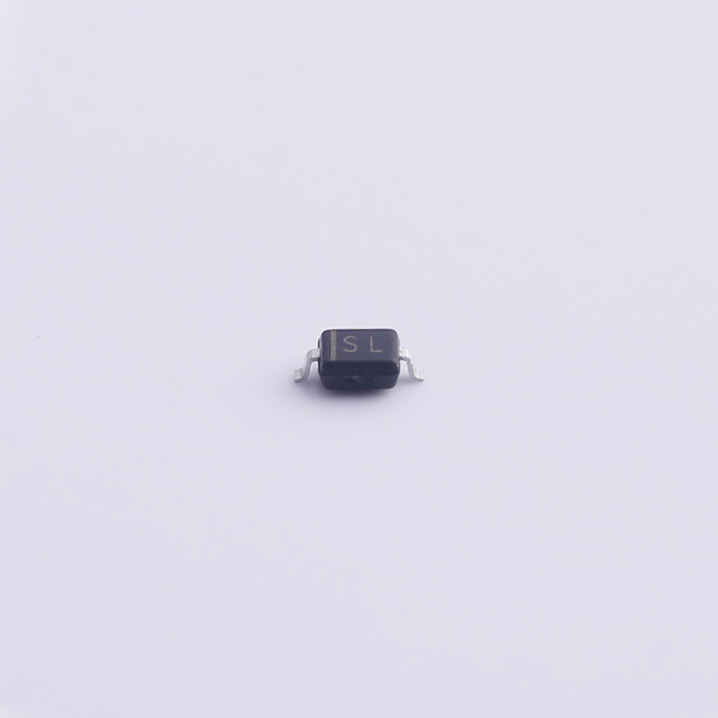

Same model may have multiple batches, images only for reference.
B5819WS ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B5819WS

Part No B5819WS
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog Schottky Diodes
Description 40V 900mV@3A 1A SOD-323
Datasheet
B5819WS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329815-B5819WS
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 600mV @ 1A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200µA @ 40V
Capacitance @ Vr, F 120pF @ 5V, 1MHz
Grade -
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Operating Temperature - Junction -65°C ~ 150°C
Package Cut Tape (CT)
Current - Reverse Leakage @ Vr 1mA @ 40V
Capacitance @ Vr, F 120pF @ 4V, 1MHz
Operating Temperature - Junction -55°C ~ 150°C
Package Tape & Reel (TR)
Capacitance @ Vr, F 110pF @ 4V, 1MHz
Supplier Device Package SC-76, SOD-323
Operating Temperature - Junction -55°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian B5819WS CAD Model
