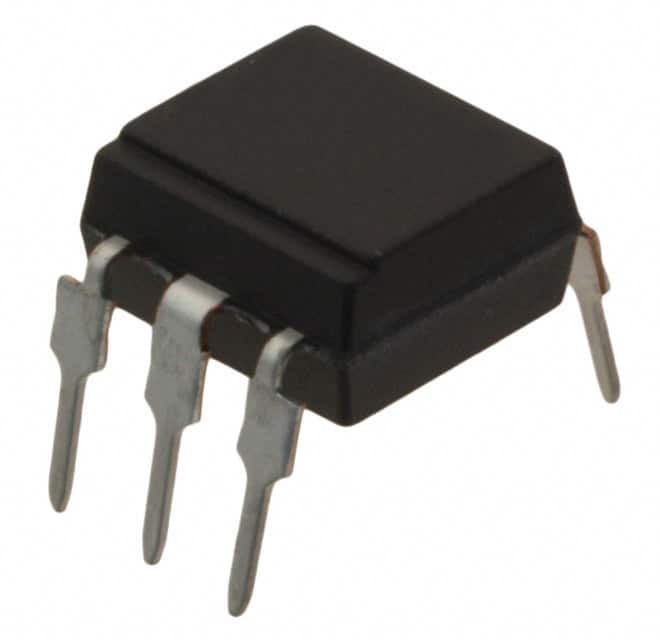

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Isolators - Optoisolators - Triac, SCR Output Optoisolators
Mfr Sharp Microelectronics
Package Tube
Product Status Obsolete
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 800 V
Static dV/dt (Min) 500V/µs
Current - LED Trigger (Ift) (Max) 3mA
Current - On State (It (RMS)) (Max) 100 mA
Current - Hold (Ih) 3.5mA
Turn On Time 50µs (Max)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 15 mA
Temperature Range - Operating -30°C ~ 100°C
Mounting Type Through Hole
Approval Agency BSI, DEMKO, SEMKO, UR, VDE
Base Product Number S21M
Standard Package 50 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1243373-S21ME8FY
Ultra Librarian 3D Model Ultra Librarian S21ME8FY CAD Model

Description

The 1243373-S21ME8FY is a triac and SCR output optoisolator from Sharp Microelectronics.

  • Package: Tube
  • Standard Package: 50 pieces
  • Voltage Isolation: 5000Vrms
  • AC Load Control: Up to 240V
  • Output Type: Triac
  • Current Transfer Ratio: 50% @ 5mA
  • Zero-Crossing Circuit: Yes
  • Status: Obsolete
  • Approvals: BSI, DEMKO, SEMKO, UR, and VDE
