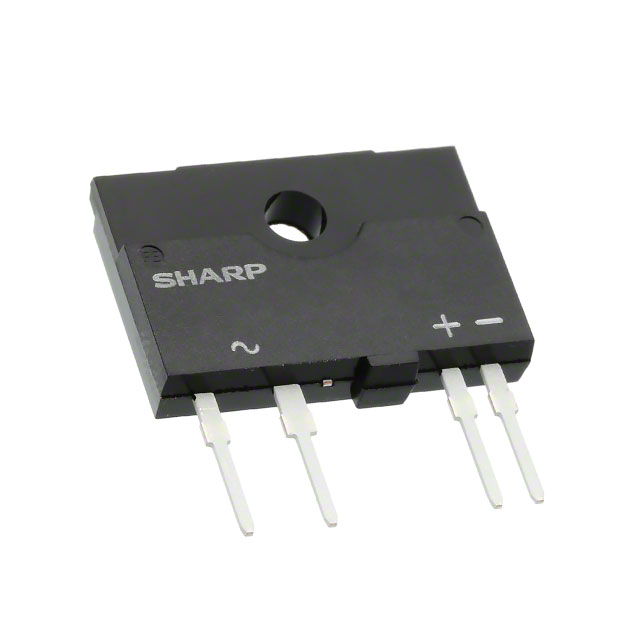

S208T01F Sharp Microelectronics
Same model may have multiple batches, images only for reference.

S208T01F

Part No S208T01F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description IT(rms)≤8A, Non-Zero Cross type Low profile SIP 4pin Triac output SSR
Datasheet
S208T01F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube
Part Status Obsolete(EOL)
Output Type Triac, Power
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 3000Vrms
Voltage - Off State 600V
Static dV/dt (Minimum) 30V/μs
Current - LED Trigger (Ift) (Maximum) 8mA
Current - On State (It (RMS)) (Maximum) 8A
Current - Hold (Ih) 50mA
Turn On Time 1ms (Maximum)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 50mA
Operating Temperature Range -25°C ~ 100°C
Mounting Style Through Hole
Package 4-SIP
Manufacturer Package 4-SIP
Approvals UL
Win Source Part Number 1245048-S208T01F
Manufacturer Homepage sharp-world.com/
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian S208T01F CAD Model

Description

The S208T01F is a power triac designed for use in AC switching applications.

  • Maximum RMS Current: 8A
  • Maximum Off-State Voltage: 600V
  • Maximum On-State Voltage Drop: 1.2V
  • Package: 4-SIP
  • Operating Temperature Range: -25°C to 100°C
  • Approval: UL
  • Voltage Isolation: 3000Vrms
