Same model may have multiple batches, images only for reference.

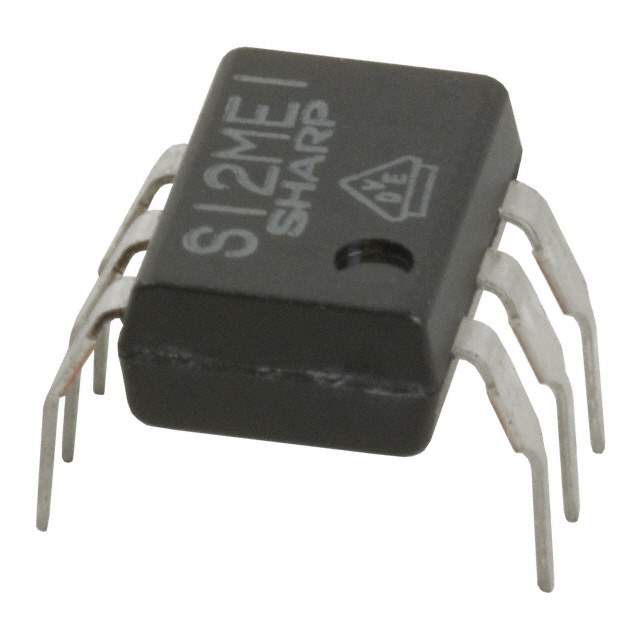

S12ME1FY Real Image
Same model may have multiple batches, images only for reference.

S12ME1FY

Part No S12ME1FY
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 4KV SCR 6DIP
Datasheet
S12ME1FY Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type SCR
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 4000Vrms
Voltage - Off State 400V
Static dV/dt (Min) 3V/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 200mA
Current - Hold (Ih) 1mA
Turn On Time 50μs (Max)
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -30°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals BSI, UR, VDE
Win Source Part Number 062962-S12ME1FY
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S12ME1FY CAD Model

Description

The Sharp Microelectronics 062962-S12ME1FY is a voltage detector type isolator that is used to detect a voltage level and provide a corresponding output.

  • Type: Voltage Detector Isolator
  • Approvals: BSI, UR, and VDE
  • Forward Voltage: 1.2V
  • Voltage-Off State: 400V
  • Maximum Current-On State: 200mA
  • Isolation Voltage: 4000Vrms
  • Current Hold: 1mA
  • Static dV/dt: 3V/μs
  • Current LED Trigger: 10mA
  • Turn On Time: 50μs (Max)
  • Mounting: Through Hole
  • Operating Temperature: -30°C to 100°C
