Same model may have multiple batches, images only for reference.

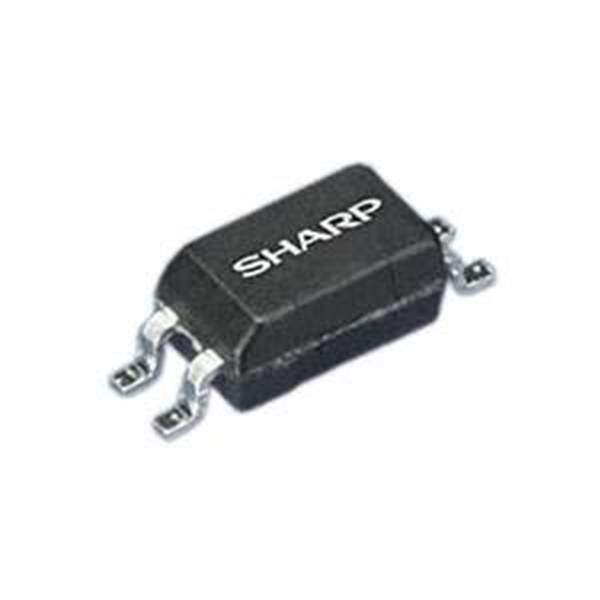

S2S5FA0F Real Image
Same model may have multiple batches, images only for reference.

S2S5FA0F

Part No S2S5FA0F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description PHOTOTRIAC COUPLER / Optoisolator Triac Output 3750Vrms 1 Channel 4-SMD
Datasheet
S2S5FA0F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Triac, SCR Output
Mfr SHARP/Socle Technology
Package Tape & Reel (TR)
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 3750Vrms
Voltage - Off State 600 V
Static dV/dt (Min) 500V/µs
Current - On State (It (RMS)) (Max) 50 mA
Current - Hold (Ih) 3.5mA
Turn On Time 100µs
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Temperature Range - Operating -30°C ~ 100°C
Mounting SMD (SMT)
Package / Case 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package 4-SMD
Approval Agency UR
Base Product Number S2S5FA0
Standard Package 3,000
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1243368-S2S5FA0F
Ultra Librarian 3D Model Ultra Librarian S2S5FA0F CAD Model

Description

The Sharp/Socle Technology S2S5FA0F is an optoisolator triac output device that is designed for use in applications that require high voltage isolation.

  • Voltage Isolation: 3750Vrms
  • Forward Current: 50mA (maximum)
  • Mounting: Surface mount device
  • Package: 4-SOIC
  • Turn-On Time: 100 microseconds
  • Static dV/dt Rating: 500V/μs
  • Operating Temperature: -30°C to 100°C
