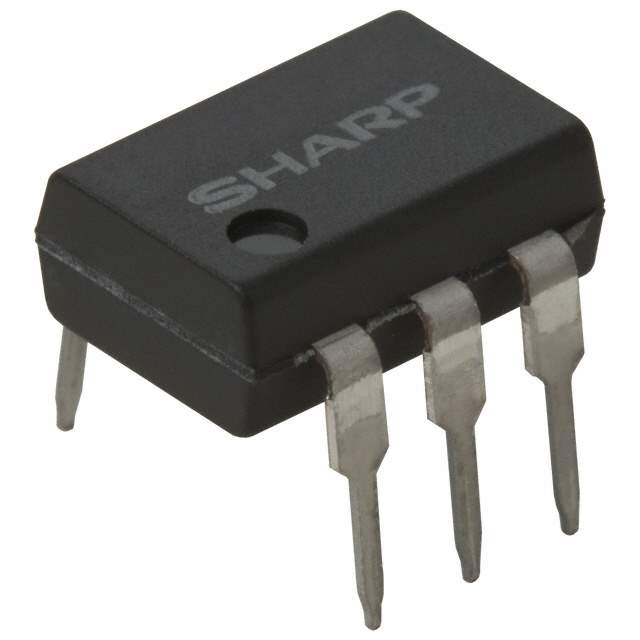

PC703V0NIZX Real Image
Same model may have multiple batches, images only for reference.

PC703V0NIZX

Part No PC703V0NIZX
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 6SMD
Datasheet
PC703V0NIZX Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 5000Vrms
Rise and Fall Time 4μs, 3μs
Input Type DC
Maximum Output Voltage 70V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Win Source Part Number 134702-PC703V0NIZX
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PC703V0NIZX CAD Model

Description

This electronic component is manufactured by Sharp Microelectronics and has the Win Source Part Number 134702-PC703V0NIZX.

  • Type: Isolator
  • Maximum Output Voltage: 70V
  • Channel Output Current: 50mA
  • Supply and Demand Status: Limited
  • Status: Obsolete (EOL)
  • Temperature Range: -30°C to 100°C
  • Case/Package: 6-SMD
  • Rise Time: 4μs
  • Fall Time: 3μs
