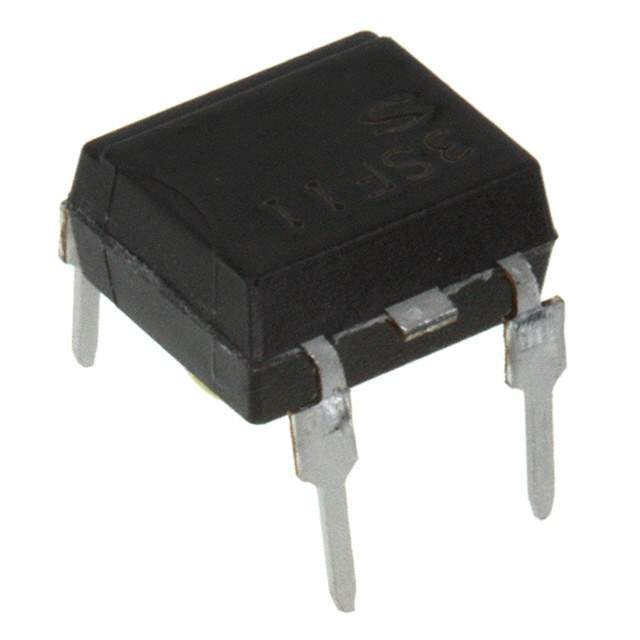

PC3SF11YTZBF Real Image
Same model may have multiple batches, images only for reference.

PC3SF11YTZBF

Part No PC3SF11YTZBF
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6DIP / Optocoupler Triac AC-OUT 1-CH 600V 5-Pin PDIP Sleeve
Datasheet
PC3SF11YTZBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 600V
Static dV/dt (Minimum) 1kV/μs
Current - LED Trigger (Ift) (Maximum) 7mA
Current - On State (It (RMS)) (Maximum) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 100μs (Maximum)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 50mA
Operating Temperature Range -30°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.300", 7.62mm), 5 Leads
Manufacturer Package 6-DIP
Approvals BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE
Win Source Part Number 791425-PC3SF11YTZBF
Popularity Medium
Supply and Demand Status Limited
Family Name PC3SF11
Introduction Date March 23, 2004
ECCN EAR99
Country of Origin China, Indonesia, Japan, Philippines
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PC3SF11YTZBF CAD Model

Description

The PC3SF11YTZBF is a triac output optocoupler from Sharp Microelectronics.

  • Package: 6-DIP
  • Voltage Isolation: 5000Vrms
  • Forward Voltage: 1.2V
  • Maximum Current: 100mA
  • Applications: Industrial controls, motor controls, and lighting controls
