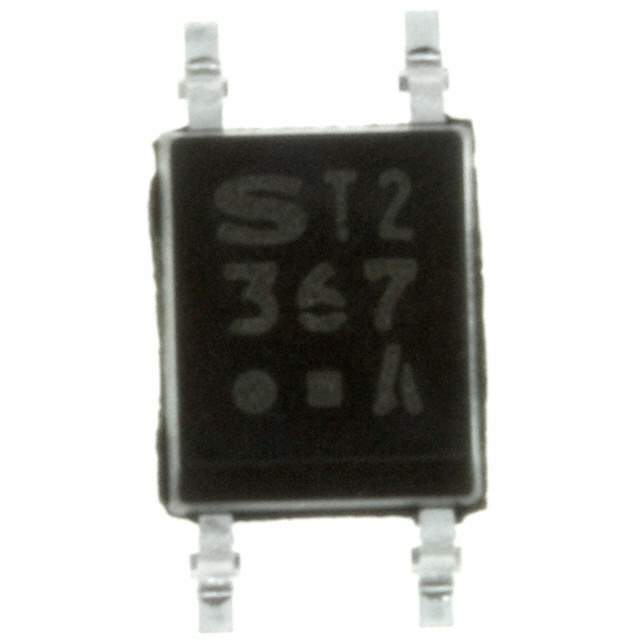

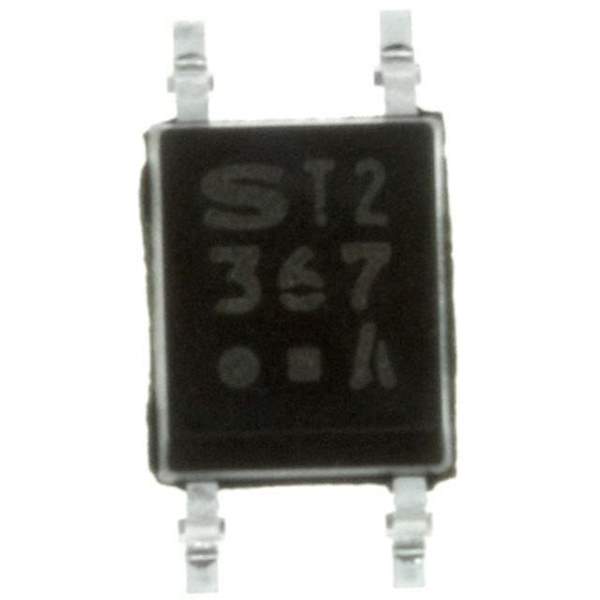

PC367N1J000F Real Image
Same model may have multiple batches, images only for reference.

PC367N1J000F

Part No PC367N1J000F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANS 4-MINI-FLAT / Mini-Flat Package High CMR, AC Input, Low Input Current Type Photocoupler
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Sharp Microelectronics
Packaging Reel
Part Status Obsolete (End Of Life)
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 150% at 500μA
Current Transfer Ratio (Maximum) 300% at 500μA
Rise / Fall Time (Typ) 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 10mA
Vce Saturation (Maximum) 200mV
Temperature Range - Operating -30°C ~ 100°C
Mounting Style SMD
Manufacturer Package 4-SMD, Gull Wing
Supplier Device Package 4-Mini-Flat
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802382-PC367N1J000F
Ultra Librarian 3D Model Ultra Librarian PC367N1J000F CAD Model

Description

The PC367N1J000F is a transistor output type optocoupler manufactured by Sharp Microelectronics.

  • Mounting Type: SMD
  • Package Type: Reel
  • Maximum Output Voltage: 80V
  • Voltage Isolation: 3750Vrms
  • Current Transfer Ratio: 150% @ 500μA (Min 300% @ 500μA)
  • Package: 4-mini-flat
  • Operating Temperature Range: -30°C to 100°C
  • Supply/Demand Status: Balanced
  • Popularity: High
  • Status: Obsolete (End of Life)
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (unlimited)
