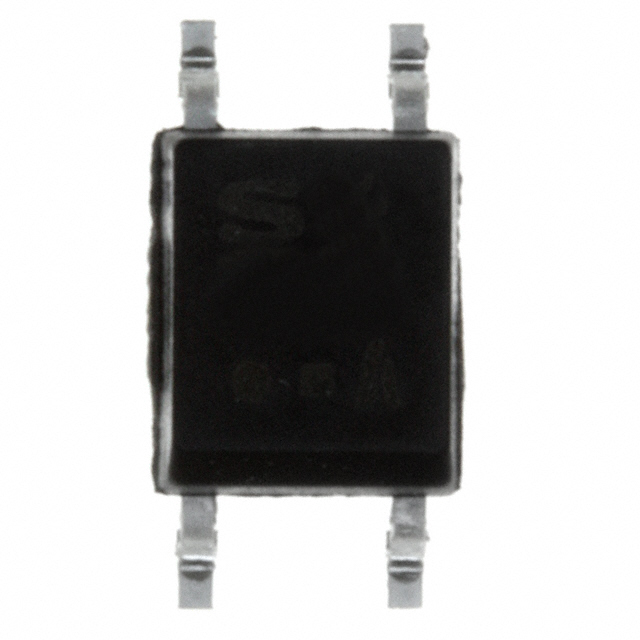

PC367NTJ000F Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PC367NTJ000F

Part No PC367NTJ000F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANS 4-MINI-FLAT
Datasheet
PC367NTJ000F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 100% @ 500μA
Maximum DC Current Transfer Ratio 500% @ 500μA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 10mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 136114-PC367NTJ000F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PC367NTJ000F CAD Model

Description

The PC367NTJ000F is a transistor output type isolator manufactured by Sharp Microelectronics.

  • Win Source Part Number: 136114-PC367NTJ000F
  • Packaging: reel-TR
  • Mounting: SMD (SMT)
  • Forward Voltage: 1.2V
  • Input Type: DC
  • Channels: 1
  • Vce Saturation (Max): 200mV
  • Isolation Voltage: 3750Vrms
  • Category: isolators
  • Status: obsolete (EOL)
  • Temperature Range: -30 degrees Celsius to 100 degrees Celsius
  • Case/Package: 4-Mini-Flat
  • DC Current Transfer Ratio (min): 100% @ 500μA
  • DC Current Transfer Ratio (max): 500% @ 500μA
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Output Voltage (max): 80V
  • Channel Output Current: 50mA
  • Continuous Forward Current-Max: 10mA
  • Supply and Demand Status: limited
