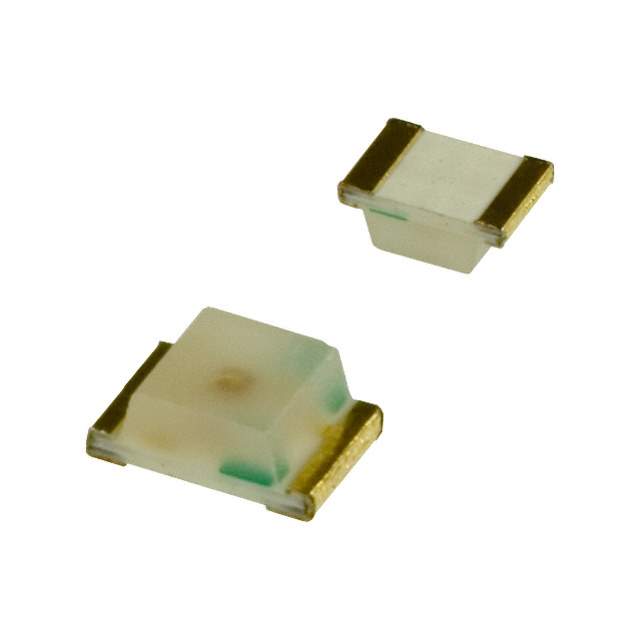

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Color Yellow
Lens Color White
Lens Transparency Diffused
Millicandela Rating 10.8mcd
Lens Style/Size Rectangle with Flat Top, 1.20mm x 1.25mm
Forward Voltage 2V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Peak 585nm
Case / Package 2125
Height (Max) 0.80mm
Win Source Part Number 113278-LT1H40A
Ultra Librarian 3D Model Ultra Librarian LT1H40A CAD Model

Description

The LT1H40A is an electronic component manufactured by Sharp Microelectronics. It is a yellow-colored LED with a viewing angle of - and a millicandela rating of 10.8mcd and a current-test of 20mA. The dominant wavelength of this LED is not specified, but the peak wavelength is 585nm. The LT1H40A is of high quality and is widely used in electronic devices. It is obsolete (EOL) and comes in a case/package of 2125.
