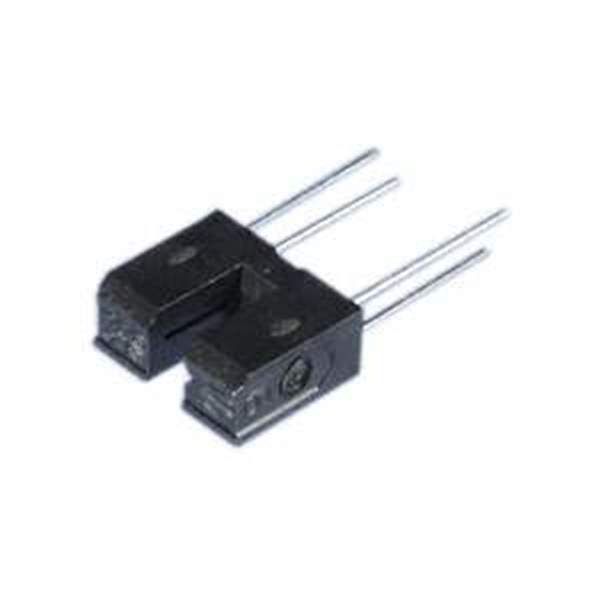

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Sensing Distance 0.118" (3mm)
Sensing Method Transmissive
Continuous forward current- Max 50mA
Maximum Current Collector 20mA
VCEO Maximum Collector-Emitter Breakdown Voltage 35V
Response Time 3μs, 4μs
Temperature Range - Operating -25°C to 85°C
Mounting Through Hole
Type Unamplified
Win Source Part Number 092613-GP1S52VJ000F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name GP1S52VJ000F
Introduction Date February 24, 1997
ECCN EAR99
Country of Origin Indonesia
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian GP1S52VJ000F CAD Model

Description

The GP1S52VJ000F is a transmissive type sensor with a sensing distance of 0.118" (3mm).

  • Response Time: 3μs, 4μs
  • Maximum Current Collector: 20mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 35V
  • Continuous Forward Current: 50mA
  • Package: Tube/Rail
