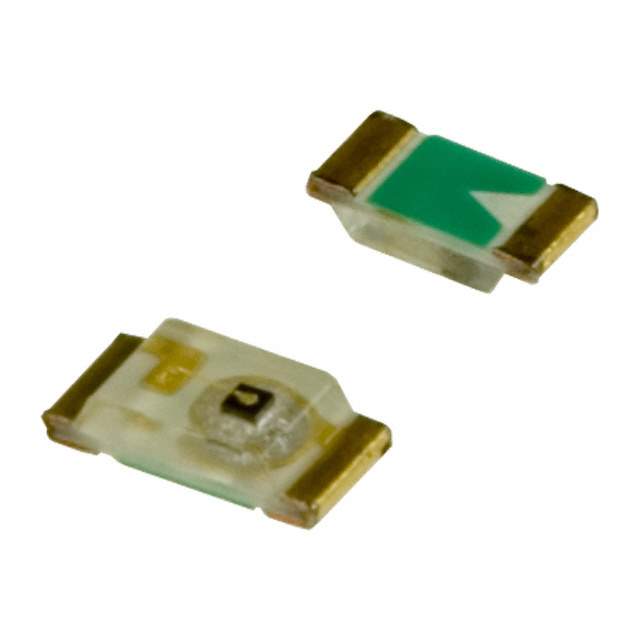

GM1HD55200A Real Image
Same model may have multiple batches, images only for reference.

GM1HD55200A

Part No GM1HD55200A
Manufacturer Sharp Microelectronics
Catalog LED Indication - Discrete
Description LED RED CLEAR 1608 SMD / HIGH-LUMINOSITY LED LAMP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer SHARP/Socle Technology
Packaging Cut Tape (CT)
Color Red
Millicandela Rating 12.5mcd
Lens Style Rectangle
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2.0V
Current - Test 20mA
Viewing Angle 160°
Mounting Style SMD
Wavelength - Dominant 635nm
Wavelength - Peak 635nm
Manufacturer Package 0603
Supplier Device Package 1608
Dimension 1.60mm L x 0.80mm W
Height (Maximum) 0.65mm
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804414-GM1HD55200A
Ultra Librarian 3D Model Ultra Librarian GM1HD55200A CAD Model

Description

The SHARP/Socle Technology LED is a red SMD component from SHARP/Socle Technology.

  • Viewing Angle: 160°
  • Millicandela Rating: 12.5mcd
  • Forward Voltage: 2.0V
  • Test Current: 20mA
  • Dominant Wavelength: 635nm
  • Peak Wavelength: 635nm
  • Package: 1608
  • Lens Size: 1.20mm x 0.80mm
  • Popularity: Medium
