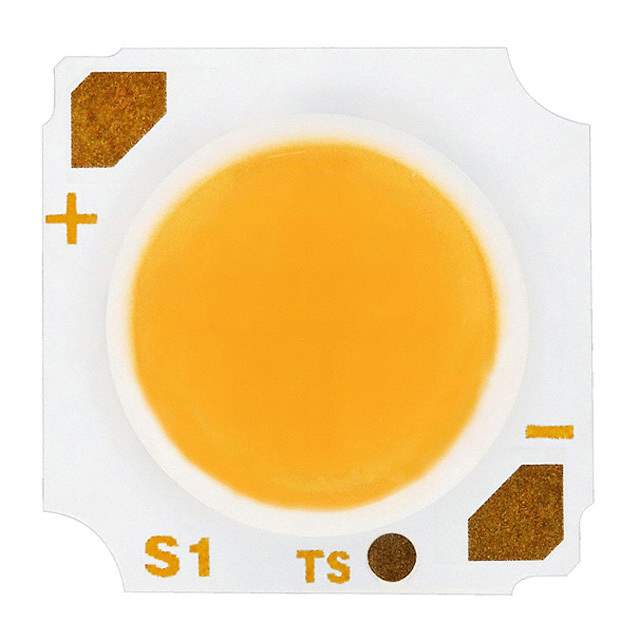

SDW01F1C-D/E-CA Real Image
Same model may have multiple batches, images only for reference.

SDW01F1C-D/E-CA

Part No SDW01F1C-D/E-CA
Manufacturer Seoul Semiconductor Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COOL WHITE 5000K 180MA SMD  /  LED Lighting COBs Engines Modules Chip On Board (COB) series White, Cool Square
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Seoul Semiconductor Inc.
Series ZC6 Z-Power COB
Package Tray
Product Status Obsolete
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5000K
Configuration Square
Luminous Flux @ Current/Temperature 870lm (Typ)
Current - Test 180mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 37V
Lumens/Watt @ Current - Test 131 lm/W
Current - Max 320mA
CRI (Color Rendering Index) 70
Viewing Angle 120°
Dimension 13.50mm L x 13.50mm W
Height 2.30mm
Lens Type Flat
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Other Names 897-1194
Standard Package 30
Win Source Part Number 977422-SDW01F1C-D/E-CA
Ultra Librarian 3D Model Ultra Librarian SDW01F1C-D/E-CA CAD Model

Description

The Seoul Semiconductor Inc. Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips is a high-quality electronic component manufactured by Seoul Semiconductor Inc.

  • Win Source Part Number: 977422-SDW01F1C-D/E-CA
  • Type: Chip on Board (COB)
  • Configuration: Square
  • Viewing Angle: 120°
  • Voltage Forward (Vf) (Typ): 37V
  • Current: 320mA
  • Color: Cool White
  • CCT: 5000K
  • Luminous Flux: 870lm (Typ)
  • Lumens/Watt @ Current - Test: 131 lm/W
  • Status: Obsolete
