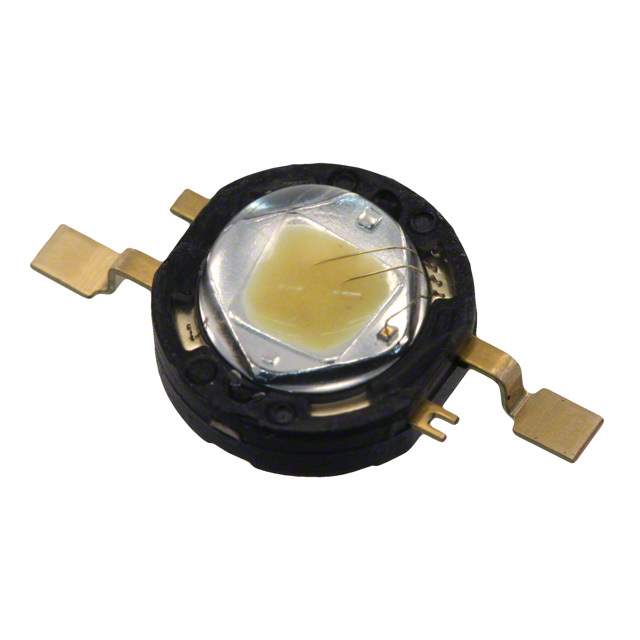

N42180-06-S2 Real Image
Same model may have multiple batches, images only for reference.

N42180-06-S2

Part No N42180-06-S2
Manufacturer Seoul Semiconductor Inc.
Catalog LED Lighting - White
Description LED ZPOWER WARM WHITE 3000K 2SMD
Datasheet
N42180-06-S2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Seoul Semiconductor Inc.
Series Z Power, P4
Packaging Reel package
Part Status Obsolete(EOL)
Color White, Warm
CCT (K) 3000K
Flux @ 25°C, Current - Test 65 lm (60 lm ~ 70 lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 3.1V
Lumens/Watt @ Current - Test 60 lm/W
CRI (Color Rendering Index) 93 (Typ)
Current - Max 800mA
Viewing Angle 126°
Mounting SMD
Package 2-SMD, Gull Wing, Exposed Pad
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.208" (5.28mm)
Thermal Resistance of Package 8.5°C/W
Win Source Part Number 790476-N42180-06-S2
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian N42180-06-S2 CAD Model

Description

The Seoul Semiconductor Inc. Z Power, P4 series N42180-06-S2 LED comes in a 2-SMD, Gull Wing, Exposed Pad package and has a viewing angle of 126°.

  • Current - Max: 800mA
  • Voltage - Forward (Vf) (Typ): 3.1V
  • Color: White, Warm
  • CCT (K): 3000K
  • Flux @ 25°C, Current - Test: 65 lm (60 lm ~ 70 lm)
  • Lumens/Watt @ Current - Test: 60 lm/W
  • CRI (Color Rendering Index): 93 (Typ)
  • Thermal Resistance of Package: 8.5°C/W
  • Dimension: 0.315" Dia (8.00mm)
  • Height - Seated (maximum): 0.208" (5.28mm)
  • Applications: High reliability and performance
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
