Same model may have multiple batches, images only for reference.

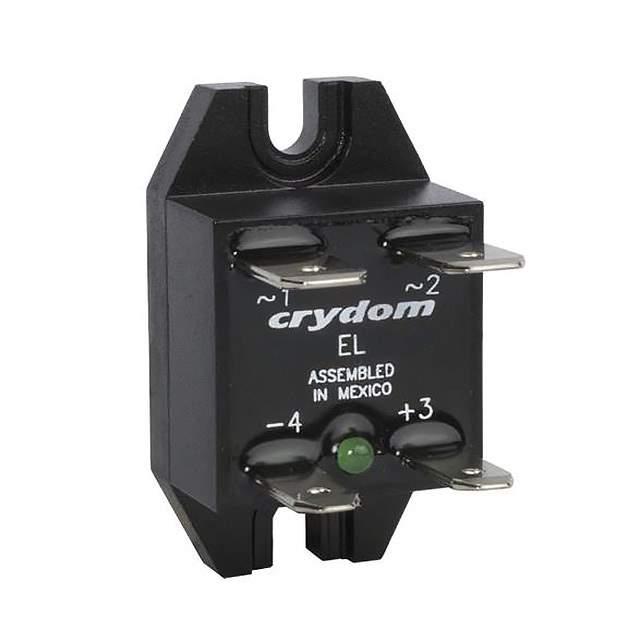

EL100D10-24 Real Image
Same model may have multiple batches, images only for reference.

EL100D10-24

Part No EL100D10-24
Manufacturer Sensata-Crydom
Catalog Solid State Relays
Description SSR RELAY SPST-NO 10A 3-100V / Solid State SPST-NO (1 Form A) Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Sensata-Crydom
Series EL
Package Bulk
Mounting Type Chassis Mount
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 21 ~ 27VDC
Voltage - Load 3 V ~ 100 V
Load Current 10 A
On-State Resistance (Max) 10 mOhms
Termination Style Quick Connect - 0.187"/0.250"
Package / Case Module
Base Product Number EL100D10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.49.0080
Other Names EL100D1024,CC1783
Standard Package 20
Win Source Part Number 1189292-EL100D10-24
Ultra Librarian 3D Model Ultra Librarian EL100D10-24 CAD Model

Description

The EL100D10-24 is a solid-state relay manufactured by Sensata-Crydom.

  • Series: EL
  • Package: Module
  • Circuit Configuration: SPST-NO (1 Form A)
  • Load Current: 10A
  • Maximum On-State Resistance: 10 mOhms
  • Voltage Load: 3V to 100V
  • Input Voltage: 21 ~ 27VDC
  • Output Type: DC
  • Termination Style: Quick Connect - 0.187"/0.250"
  • Mounting: Chassis Mount
  • Packaging: Bulk
