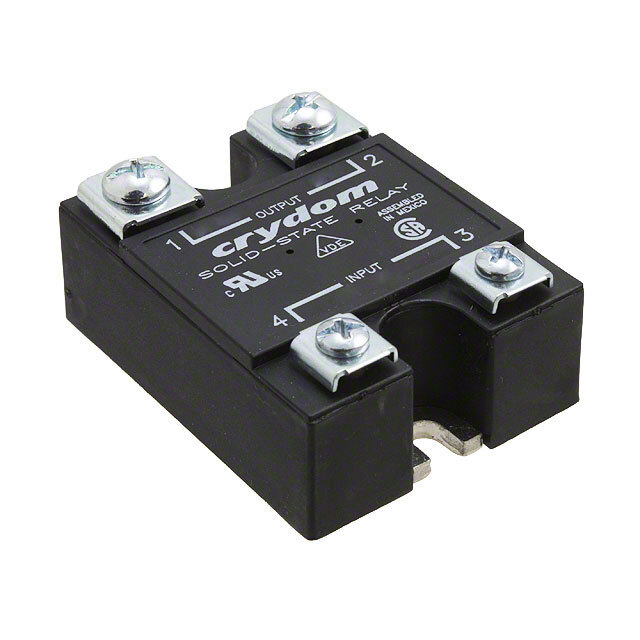

D2D07 Sensata-Crydom – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mounting Type Chassis Mount
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 3.5 ~ 32VDC
Voltage - Load 1 V ~ 200 V
Load Current 7 A
On-State Resistance (Max) 290 mOhms
Termination Style Screw Terminal
Temperature Range - Operating -40°C ~ 100°C
Case / Package Hockey Puck
Approval Agency CE, cURus
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1503080-D2D07
Ultra Librarian 3D Model Ultra Librarian D2D07 CAD Model
