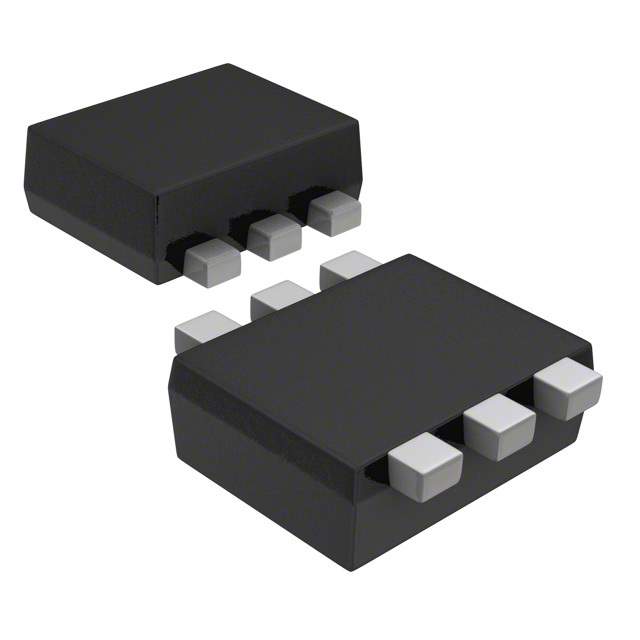

UCLAMP0504A.TCT Real Image
Same model may have multiple batches, images only for reference.

UCLAMP0504A.TCT

Part No UCLAMP0504A.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12VC SC89
Datasheet
UCLAMP0504A.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12V
Peak Pulse Current(Ippm) 7A (8/20μs)
Power Dissipation - Pd 100W
Applications General Purpose
Capacitance @ Frequency 60pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SC-89-6
Win Source Part Number 093339-UCLAMP0504A.TCT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Consumer Electronics, Portable Devices, Audio, Industrial
Ultra Librarian 3D Model Ultra Librarian UCLAMP0504A.TCT CAD Model

Description

The Semtech Corporation 093339-UCLAMP0504A.TCT is a Zener diode designed for general-purpose applications.

  • Packaging: SMD (SMT)
  • Channels: four unidirectional channels
  • Capacitance @ frequency: 60pF @ 1MHz
  • Category: Circuit Protection
  • Market Status: active
  • Temperature Range: -55°C to 125°C (TJ)
  • Case / Package: SC-89-6
  • STAND-OFF voltage (Vwm): 5V (Max)
  • Breakdown voltage: 6V (Min)
  • Max clamping voltage: 12V
  • Peak pulse current(Ippm): 7A (8/20μs)
  • Power dissipation - Pd: 100W
  • Applications: Computers & Computer Peripherals, Consumer Electronics, Portable Devices, Audio, and Industrial applications.
