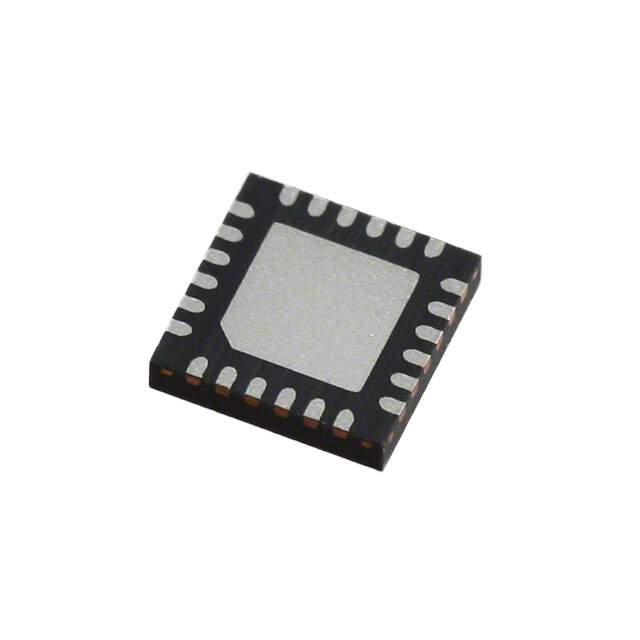

SX1280IMLTRT

Part No SX1280IMLTRT
Manufacturer Semtech Corporation
Catalog RF Transceiver ICs
Description IC RF TXRX 802.15.4 24WFQFN / Long Range, Low Power, 2.4 GHz Transceiver with Ranging Capability
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Semtech Corporation
Packaging Reel
Type TxRx Only
RF Family/Standard 802.15.4
Protocol LoRa
Modulation GFSK
Frequency 2.4GHz
Power - Output 12.5dBm
Sensitivity -132dBm
Serial Interfaces SPI, UART
Supply Voltage (V) 1.8V ~ 3.7V
Current - Receiving 8.2mA
Current - Transmitting 24mA
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 24-WFQFN Exposed Pad
Supplier Device Package 24-QFN (4x4)
Manufacturer Pack Quantity 3,000
MSL Level 2 (1 Year)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805147-SX1280IMLTRT
Ultra Librarian 3D Model Ultra Librarian SX1280IMLTRT CAD Model

Description

SX1280IMLTRT from Semtech Corporation is an RF Transceiver IC intended for wireless design work where engineers need a compact radio solution for embedded communication systems. In practical use, parts in this category are commonly evaluated for industrial monitoring, smart sensing, asset tracking, consumer wireless accessories, and other low-power RF links, depending on the target architecture and approved design parameters. This device is positioned for teams that prioritize integration, signal-chain simplification, and reliable sourcing from a recognized analog and wireless semiconductor manufacturer. Because the current lifecycle status for SX1280IMLTRT is unknown based on the provided input, engineering, purchasing, and compliance teams should confirm manufacturer support status before committing to new designs or volume production. RoHS compliance information is also not available from the input provided, so environmental compliance should be verified through the latest Semtech documentation, datasheet, certificate of compliance, and distributor records before procurement.
