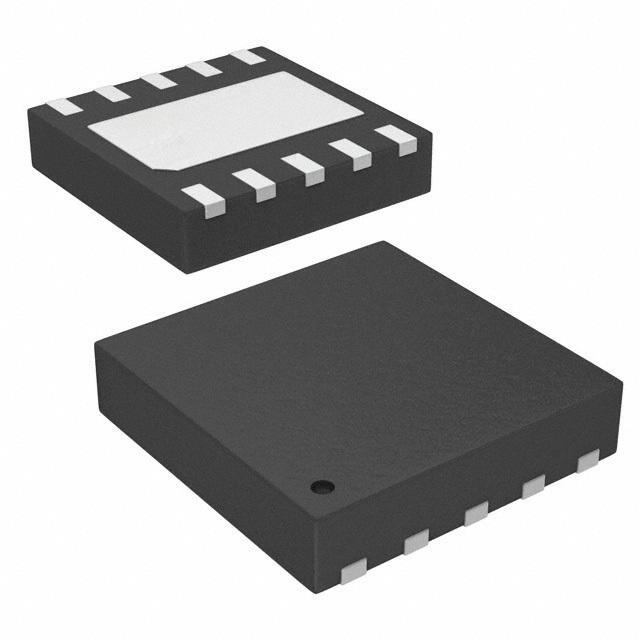

Same model may have multiple batches, images only for reference.

RCLAMP3304N.TCT

Name: RCLAMP3304N.TCT
Brand: Semtech Corporation
SKU: 291400
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RCLAMP3304N.TCT
Manufacturer	Semtech Corporation
Catalog	TVS - Diodes
Description	ESD Suppressor Diode Diode Array Uni-Dir 3.3V 10-Pin SLP EP T/R / TVS DIODE 3.3VWM 18VC 10SLP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Semtech Corporation
Packaging	Reel - TR
Status	Not For New Designs
Type	Steering (Rail to Rail)
Unidirectional Channels	4
STAND-OFF Voltage (Vwm)	3.3V (Max)
Minimum Breakdown Voltage	3.5V
Max Clamping Voltage	18V
Peak Pulse Current(Ippm)	25A (8/20μs)
Power Dissipation - Pd	450W
Power Line Protection	Yes
Applications	General Purpose
Capacitance @ Frequency	3.8pF @ 1MHz
Temperature Range - Operating	-55°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	SLP2626P10 (2.6x2.6)
Win Source Part Number	027260-RCLAMP3304N.TCT
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Computers & Computer Peripherals, Communications & Networking, Imaging, Video & Vision, RF Communications, Sensing & Instrumentation, Power Management, Industrial, Multimedia
Family Name	RClamp3304N
Introduction Date	February 17, 2005
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2022
Ultra Librarian 3D Model	Ultra Librarian RCLAMP3304N.TCT CAD Model

Alternative Products

Description

The Semtech Corporation Steering (Rail to Rail) Type Circuit Protection is a 2.6x2.6 SLP2626P10 package that is designed for general purpose applications.

Package: 2.6x2.6 SLP2626P10
Application: general purpose
Stand-off voltage: 3.3V (Max)
Minimum breakdown voltage: 3.5V
Channels: four unidirectional
Protection: power line
Peak pulse current: 25A (8/20μs)
Power dissipation: 450W
Recommendation: not for new designs
Popularity rating: high
