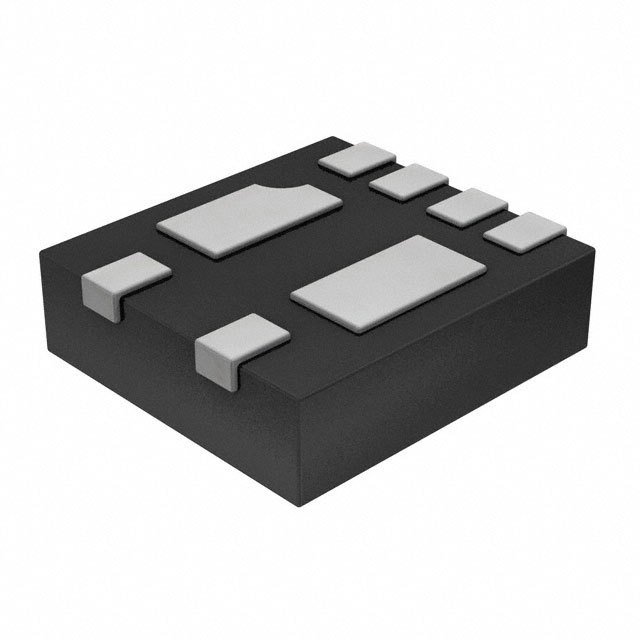

RCLAMP1255P.TGT Semtech Corporation
Same model may have multiple batches, images only for reference.

RCLAMP1255P.TGT

Part No RCLAMP1255P.TGT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 4VWM 12.5VC
Datasheet
RCLAMP1255P.TGT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 3
STAND-OFF Voltage (Vwm) 4V (Max)
Minimum Breakdown Voltage 4.5V
Max Clamping Voltage 12.5V
Peak Pulse Current(Ippm) 3A (8/20μs)
Power Dissipation - Pd 40W
Power Line Protection Yes
Applications USB OTG
Capacitance @ Frequency 0.35pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SLP2018P6
Win Source Part Number 042304-RCLAMP1255P.TGT
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RCLAMP1255P.TGT CAD Model

Description

The RCLAMP1255P.TGT is a circuit protection device manufactured by Semtech Corporation.

  • Supply and Demand Status: sufficient
  • Type: steering (rail to rail)
  • Protection: power line
  • Applications: USB OTG
