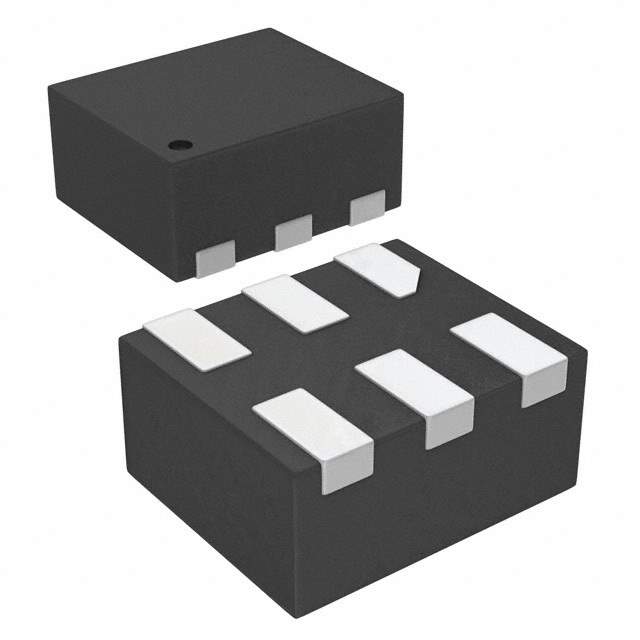

The RCLAMP0502N is a transient voltage suppression (TVS) diode array manufactured by Semtech Corporation. It is designed to protect sensitive electronic components from electrostatic discharge (ESD), electrical fast transients (EFT), and surge events. This device is commonly used in portable devices, communication equipment, and other applications where protection against transient voltages is critical.

Applications:

• Portable devices (smartphones, tablets)
• Communication equipment (routers, modems)
• Data lines protection (USB, HDMI)
• I/O port protection
• Industrial equipment

Features:

• Low clamping voltage
• Low capacitance
• Fast response time
• Small package size
• IEC 61000-4-2 (ESD) compliant
• RoHS compliant

Benefits:

• Protects sensitive components from damage
• Improves system reliability
• Maintains signal integrity
• Saves board space
• Meets industry standards for ESD protection

The RCLAMP0502N features a low clamping voltage, which limits the voltage seen by the protected components during a transient event. The low capacitance minimizes signal distortion, making it suitable for high-speed data lines. The fast response time ensures that the device can quickly clamp transient voltages. The small package size allows for easy integration into space-constrained applications.

Technical Specifications:

The clamping voltage is typically around 6V. The capacitance is typically less than 1 pF. It offers protection against ESD events up to ±30kV (air discharge) and ±30kV (contact discharge). The package is typically a small SOT-23 or similar surface-mount package.
