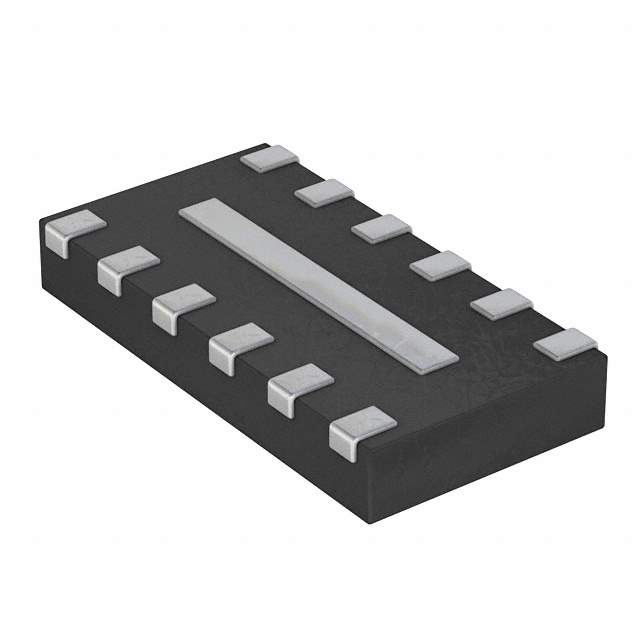

Same model may have multiple batches, images only for reference.

ECLAMP2506K.TCT

Name: ECLAMP2506K.TCT
Brand: Semtech Corporation
SKU: 450790
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ECLAMP2506K.TCT
Manufacturer	Semtech Corporation
Catalog	EMI/RFI Filters (LC, RC Networks)
Description	FILTER LC(PI) 17NH/12PF ESD SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	Semtech Corporation
Packaging	Reel - TR
Status	Active
Type	Low Pass
Filter Order	3rd
Technology	LC (Pi)
Number of Channels	6
Center / Cutoff Frequency	250MHz (Cutoff)
Attenuation Value	20dB @ 800MHz to 2.7GHz
Resistance - Channel (Ohms)	18
Values	L = 17nH, C = 12pF
ESD Protection	Yes
Temperature Range - Operating	-40°C to 85°C
Applications	Data Lines for Mobile Devices
Mounting	SMD (SMT)
Dimension	0.098" L x 0.051" W (2.50mm x 1.30mm)
Height	0.022" (0.55mm)
Win Source Part Number	1035790-ECLAMP2506K.TCT
Popularity	Medium
Supply and Demand Status	Balance
Application Field	Used in Automotive, Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Lighting, Sensing & Instrumentation, Industrial
Ultra Librarian 3D Model	Ultra Librarian ECLAMP2506K.TCT CAD Model

Alternative Products

Description

The Semtech Corporation ECLAMP2506K.TCT is a low pass filter that is suitable for use in data lines for mobile devices.

Channels: Six
Filter Order: 3rd
Attenuation: 20dB @ 800MHz to 2.7GHz
Center/Cutoff Frequency: 250MHz (Cutoff)
Resistance: 18 Ohms
Values: L = 17nH, C = 12pF
Mounting: SMD (SMT)
Height: 0.022" (0.55mm)
Features: ESD Protection
