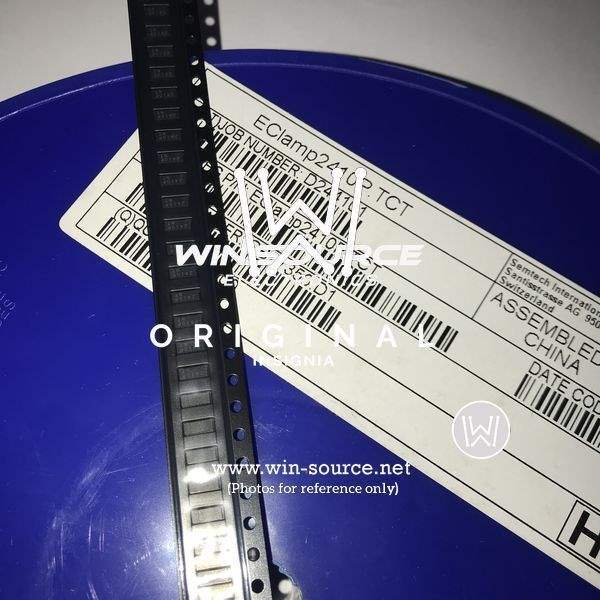

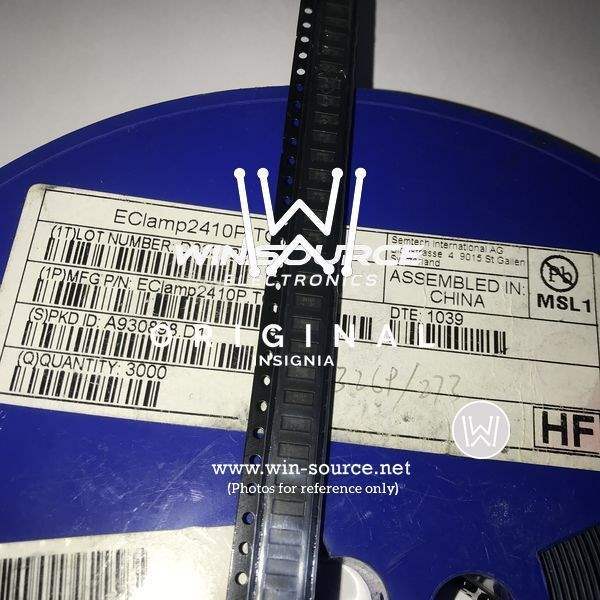

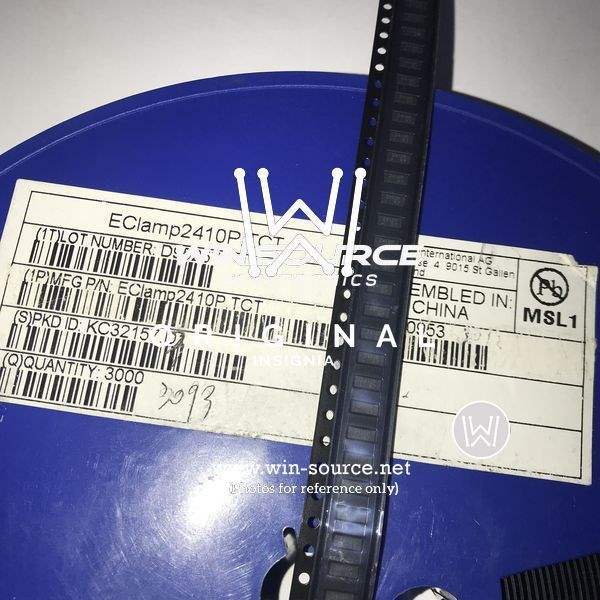

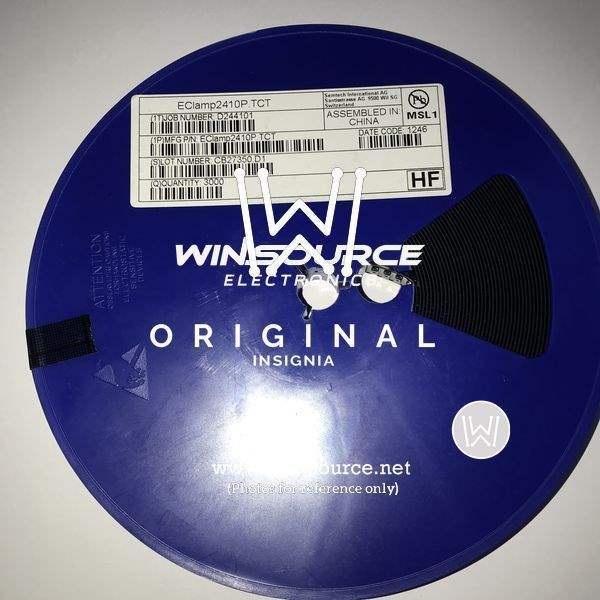

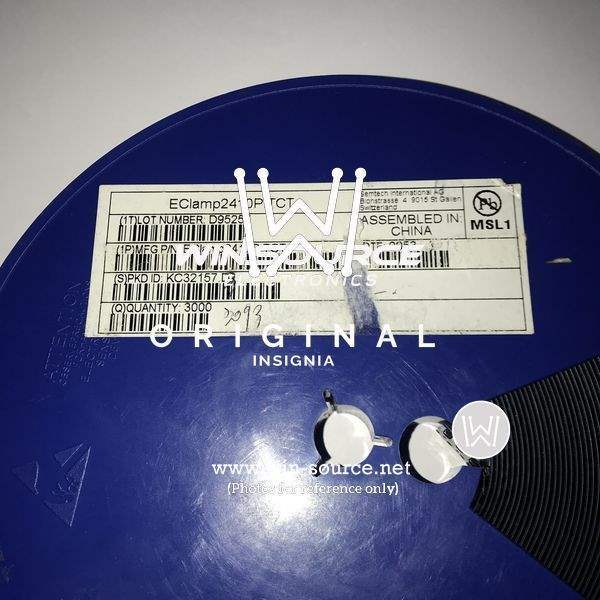

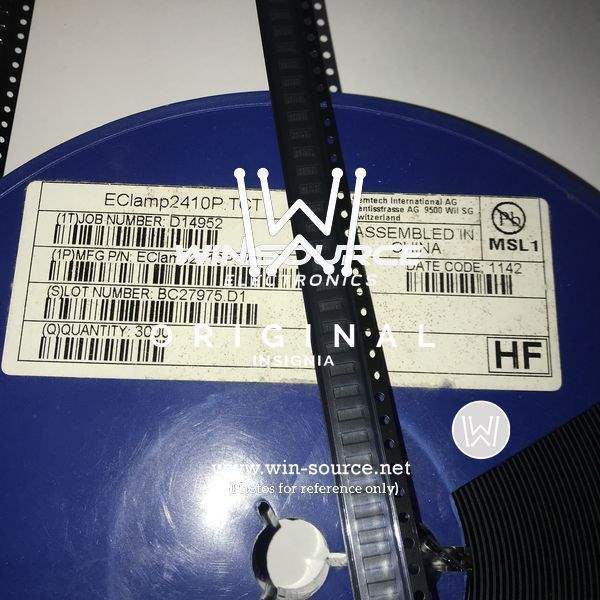

ECLAMP2410P.TCT Semtech Corporation ECLAMP2410P.TCT Real Image ECLAMP2410P.TCT label picture 2 ECLAMP2410P.TCT label picture 3 ECLAMP2410P.TCT real image ECLAMP2410P.TCT real image 2 ECLAMP2410P.TCT real image 3 ECLAMP2410P.TCT real image 4
Same model may have multiple batches, images only for reference.
ECLAMP2410P.TCT Semtech Corporation ECLAMP2410P.TCT Real Image ECLAMP2410P.TCT label picture 2 ECLAMP2410P.TCT label picture 3 ECLAMP2410P.TCT real image ECLAMP2410P.TCT real image 2 ECLAMP2410P.TCT real image 3 ECLAMP2410P.TCT real image 4
ECLAMP2410P.TCT Semtech Corporation ECLAMP2410P.TCT Real Image ECLAMP2410P.TCT label picture 2 ECLAMP2410P.TCT label picture 3 ECLAMP2410P.TCT real image ECLAMP2410P.TCT real image 2 ECLAMP2410P.TCT real image 3 ECLAMP2410P.TCT real image 4
Same model may have multiple batches, images only for reference.

ECLAMP2410P.TCT

Part No ECLAMP2410P.TCT
Manufacturer Semtech Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description ESD Suppressor TVS Bi-Dir 5V 16-Pin SLP-P EP T/R / FILTER RC(PI) 45 OHM/12PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 6
Resistance - Channel (Ohms) 45
Values R = 45 Ohms, C = 12pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height 0.026" (0.65mm)
Win Source Part Number 015156-ECLAMP2410P.TCT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name EClamp2410P
Introduction Date July 21, 2006
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian ECLAMP2410P.TCT CAD Model

Description

Product Overview

The ECLAMP2410P.TCT is a state-of-the-art electronic protection device ideal for high-speed data transmission applications. It is engineered to provide excellent ESD protection, preventing electrical failures.

Features and Benefits

  • Enhanced ESD protection up to 30kV
  • Ultra-low capacitance ensuring high-speed signal integrity
  • Compact architecture enhancing system flexibility
  • RoHS compliant and environmentally friendly

Applications

  • USB interfaces
  • Display ports
  • Automotive electronics
  • Telecommunication systems

The ECLAMP2410P.TCT ensures electronic systems maintain peak performance amidst electrical disturbances.
