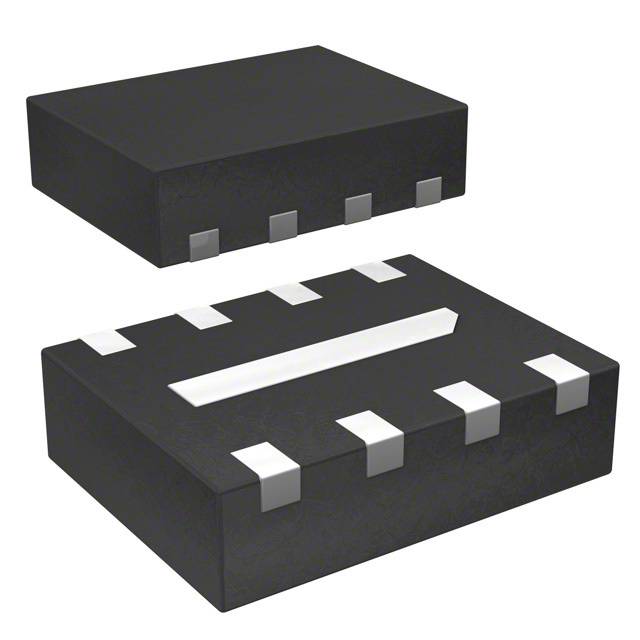

Same model may have multiple batches, images only for reference.
ECLAMP2394P.TCT Semtech Corporation
Same model may have multiple batches, images only for reference.

ECLAMP2394P.TCT

Part No ECLAMP2394P.TCT
Manufacturer Semtech Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 19NH/12PF ESD SMD
Datasheet
ECLAMP2394P.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 5th
Technology LC (Pi)
Number of Channels 4
Center / Cutoff Frequency 150MHz (Cutoff)
Attenuation Value 30dB @ 800MHz to 2.7GHz
Resistance - Channel (Ohms) 18
Values L = 19nH, C = 12pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.083" L x 0.063" W (2.10mm x 1.60mm)
Height 0.026" (0.65mm)
Win Source Part Number 015154-ECLAMP2394P.TCT
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ECLAMP2394P.TCT CAD Model

Description

Product Description

The ECLAMP2394P.TCT is a cost-effective transient voltage suppressor developed for consumer electronics. It provides a solid line of defense against voltage spikes and transients, promoting device longevity and reliability.

Applications & Projects

  • Television sets
  • Set-top boxes
  • Home appliances
  • Industrial control systems

Features & Benefits

  • ESD protection up to 30kV
  • Lower operating voltage range
  • Optimal energy absorption
  • Diverse mounting options

Additional Details

The ECLAMP2394P.TCT ensures device protection in both normal and adverse conditions, making it essential for home and industrial electronic systems.
