Same model may have multiple batches, images only for reference.

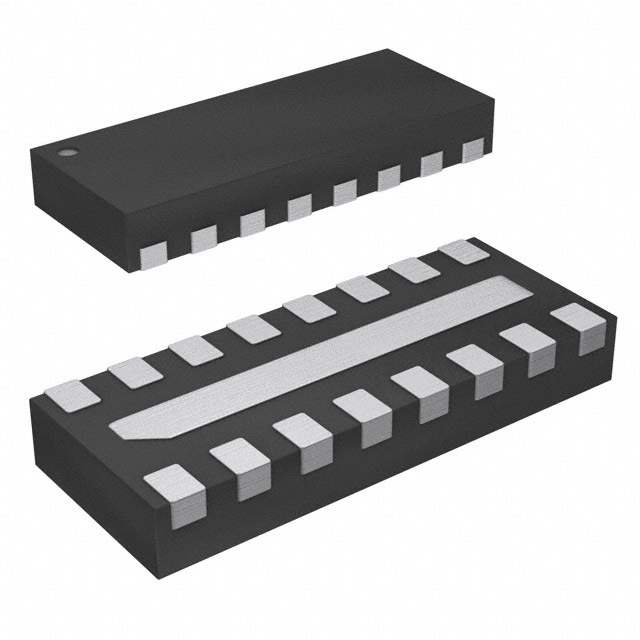

ECLAMP2388P.TCT Real Image
Same model may have multiple batches, images only for reference.

ECLAMP2388P.TCT

Part No ECLAMP2388P.TCT
Manufacturer Semtech Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 200 OHM/12PF SMD
Datasheet
ECLAMP2388P.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 8
Attenuation Value 30dB @ 800MHz to 2.7GHz
Resistance - Channel (Ohms) 200
Values R = 200 Ohms, C = 12pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height 0.026" (0.65mm)
Win Source Part Number 080887-ECLAMP2388P.TCT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECLAMP2388P.TCT CAD Model

Description

Product Description

The ECLAMP2388P.TCT is engineered to provide excellent ESD protection while supporting high-frequency applications. Its advanced technology design prevents data loss and signal degradation by maintaining high-speed lines.

Applications & Projects

  • USB interfaces
  • HDMI ports
  • Smartphones
  • Wireline data communication

Features & Benefits

  • Multi-channel ESD protection
  • High peak pulse power
  • Ultra-low capacitance
  • Configurable for various applications

Additional Details

Offering multiple channel protection, the ECLAMP2388P.TCT is perfect for multi-line interfaces. Its robust protection features ensure long-term reliability in challenging electrical environments.
