8020.5071 Schurter Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

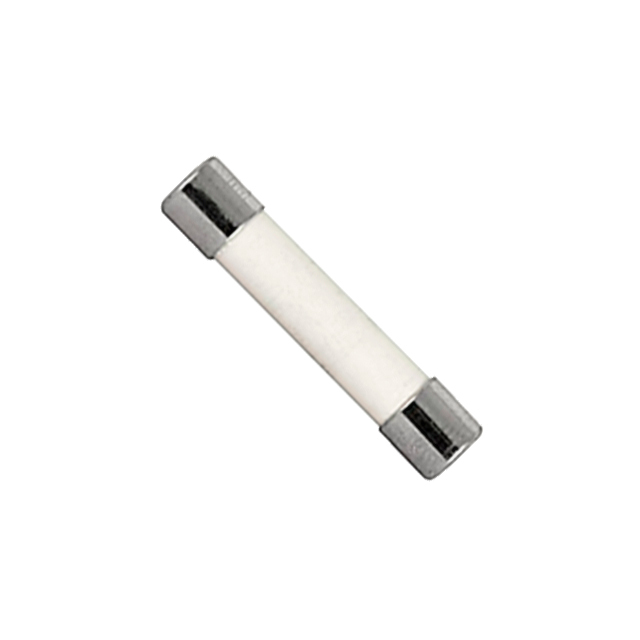

8020.5071

Part No 8020.5071
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE CERAMIC 2A 500VAC 3AB 3AG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 2 A
Voltage Rating - AC 500 V
Response Time Fast Blow
Case / Package 3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 2.0
Approval Agency cURus
Temperature Range - Operating -40°C ~ 85°C
Size / Dimension 0.250\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1603641-8020.5071
Ultra Librarian 3D Model Ultra Librarian 8020.5071 CAD Model
