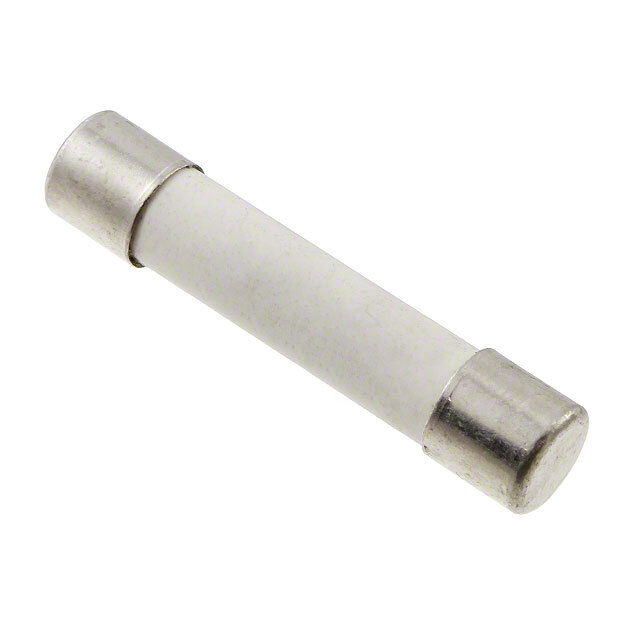

Same model may have multiple batches, images only for reference.
8020.5068 Schurter Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

8020.5068

Part No 8020.5068
Manufacturer Schurter Inc.
Catalog Fuses
Description 1 A 500 V AC DC Fuse Cartridge, Ceramic Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr SCHURTER Inc.
Series SHF 6.3x32
Packaging Bulk
Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 1 A
Voltage Rating - AC 500 V
Response Time Fast Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 1.5
Approval Agency cURus
Temperature Range - Operating -40°C ~ 85°C
Size / Dimension 0.250" Dia x 1.252" L (6.35mm x 31.80mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1481779-8020.5068
Ultra Librarian 3D Model Ultra Librarian 8020.5068 CAD Model
