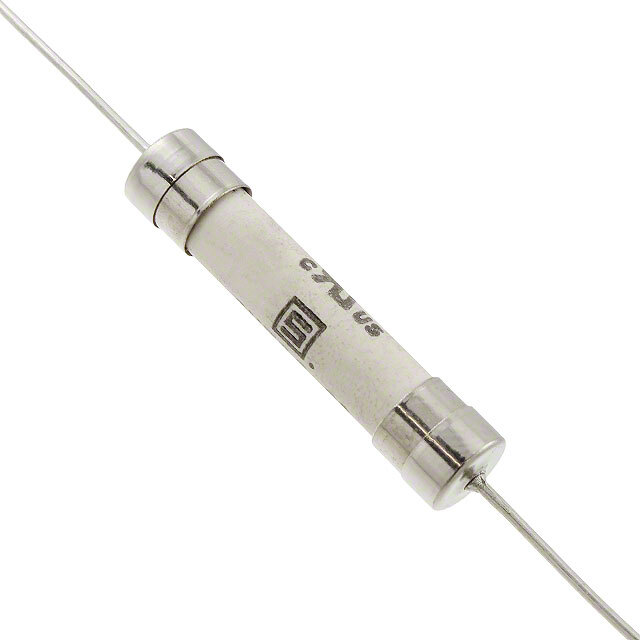

Same model may have multiple batches, images only for reference.
8020.5011 Schurter Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

8020.5011

Part No 8020.5011
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE CERAMIC 1A 500VAC
Datasheet
8020.5011 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 1 A
Voltage Rating - AC 500 V
Response Time Slow Blow
Case / Package 3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 1.55
Approval Agency cURus
Temperature Range - Operating -40°C ~ 85°C
Size / Dimension 0.250\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1603631-8020.5011
Ultra Librarian 3D Model Ultra Librarian 8020.5011 CAD Model
