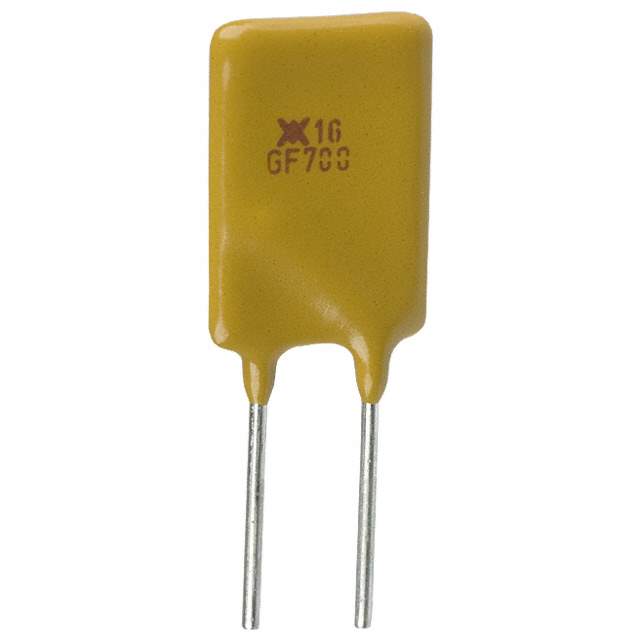

The Littelfuse RGEF700-2 is a polymeric type circuit protection device designed for use in electronic circuits.

• Approvals: It has CSA, TUV, and UL approvals
• Voltage Range: and has a voltage range of 16V
• Maximum Current: and a maximum current of 100A.
• Current hold (Ih) (Max): The current hold (Ih) (Max) is 7A
• Current trip (It): and the current trip (It) is 11.9A
• Time to trip: with a time to trip of 3.5s.
• Mounting: The product is through-hole mounted
• Package: and comes in a reel-TR package.
• Supply and Demand Status: The supply and demand status is balanced
• Operating Temperature Range: and the operating temperature range is between -40°C to 85°C.
