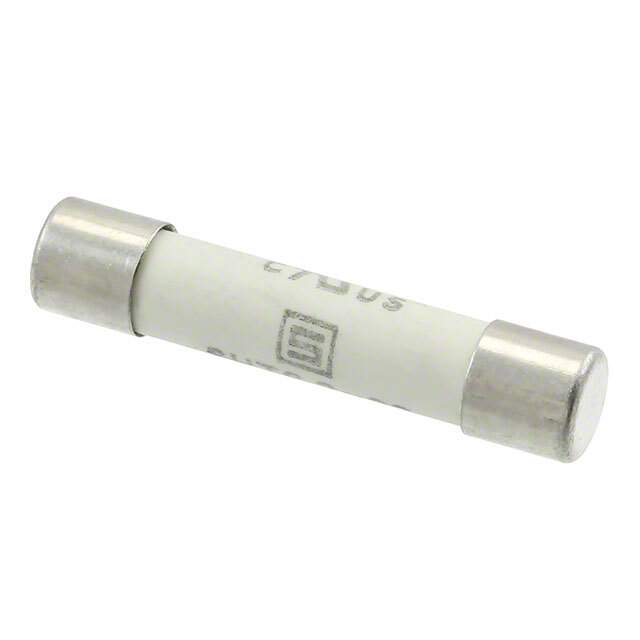

8020.5019 Real Image
Same model may have multiple batches, images only for reference.

8020.5019

Part No 8020.5019
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE CERAMIC 6.3A 500VAC
Datasheet
8020.5019 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr SCHURTER Inc.
Series SHT 6.3X32
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 6.3 A
Voltage Rating - AC 500 V
Response Time Slow Blow
Package / Case Cartridge, Non-Standard
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 225
Approval Agency cURus
Temperature Range - Operating -40°C ~ 85°C
Size / Dimension 0.250" Dia x 1.252" L (6.35mm x 31.80mm)
Standard Package 10 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 858316-8020.5019
Ultra Librarian 3D Model Ultra Librarian 8020.5019 CAD Model

Description

The 8020.5019 is a ceramic cartridge fuse from SCHURTER Inc..

  • Voltage Rating AC: 500V AC
  • Response Time: Slow Blow
  • Breaking Capacity @ Rated Voltage: 1.5kA
  • Size / Dimension: 0.250" Dia x 1.252" L (6.35mm x 31.80mm)
  • Product Status: Active
  • REACH Status: Unaffected
