Same model may have multiple batches, images only for reference.

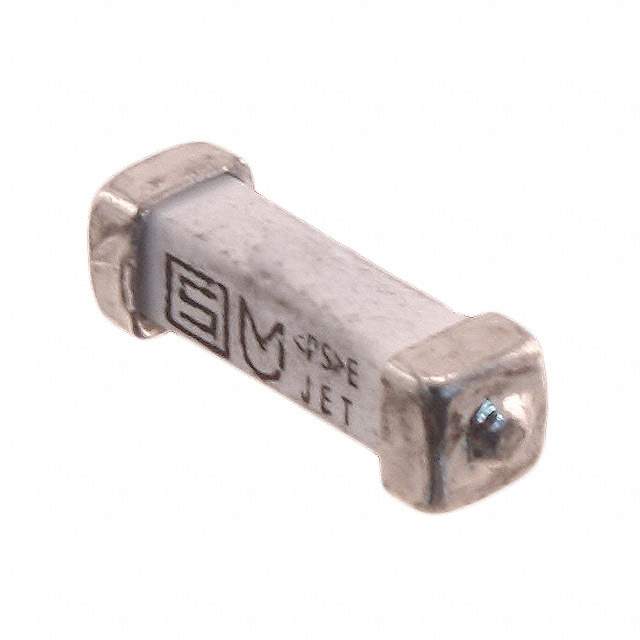

3403.0166.24 Real Image
Same model may have multiple batches, images only for reference.

3403.0166.24

Part No 3403.0166.24
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MNT 1A 250VAC 125VDC
Datasheet
3403.0166.24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 1A
Voltage Rating - AC 250V
Voltage Rating - DC 125V
Response Time Slow
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 200A AC, 35A DC
Nominal Melting - I2t 2.8
Approvals CQC, cURus, KC, PSE/JET, UL, VDE
Temperature Range - Operating -55°C to 125°C
Dimension 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm)
Win Source Part Number 053789-3403.0166.24
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3403.0166.24 CAD Model

Description

Product Overview

Introducing the 3403.0166.24, a component known for its unmatched reliability and adaptability in challenging environments, suitable for a wide array of industries.

Features and Benefits

  • Reliable performance under stress
  • Adaptable to various system demands
  • Improved thermal management
  • Designed for minimal maintenance

Applications

  • Industrial control systems
  • Data centers
  • Wearable technology
  • Mining equipment

Additional Details

This component is designed to meet demanding application needs with a focus on sustainability and durability.
