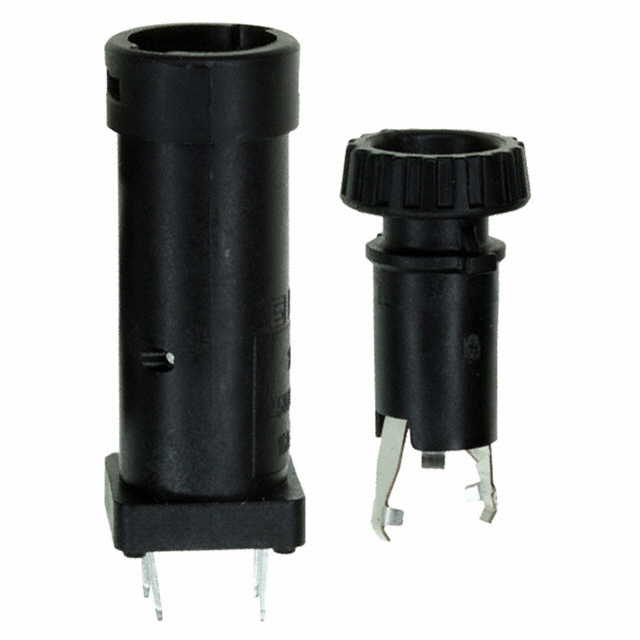

3101.0045 Schurter Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

3101.0045

Part No 3101.0045
Manufacturer Schurter Inc.
Catalog Fuseholders
Description Fuse Holder 16 A 500V 1 Circuit Cartridge Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr SCHURTER Inc.
Series FPG4
Packaging Bulk
Mounting Type Through Hole
Fuse Size 0.197" Dia x 0.787" L (5mm x 20mm)
Current Rating (Amps) 16 A
For Use With/Related Products 5mm x 20mm
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 500V
Orientation Vertical
Termination Style PC Pin
Contact Material Copper Alloy
Contact Finish Tin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1481948-3101.0045
Ultra Librarian 3D Model Ultra Librarian 3101.0045 CAD Model
