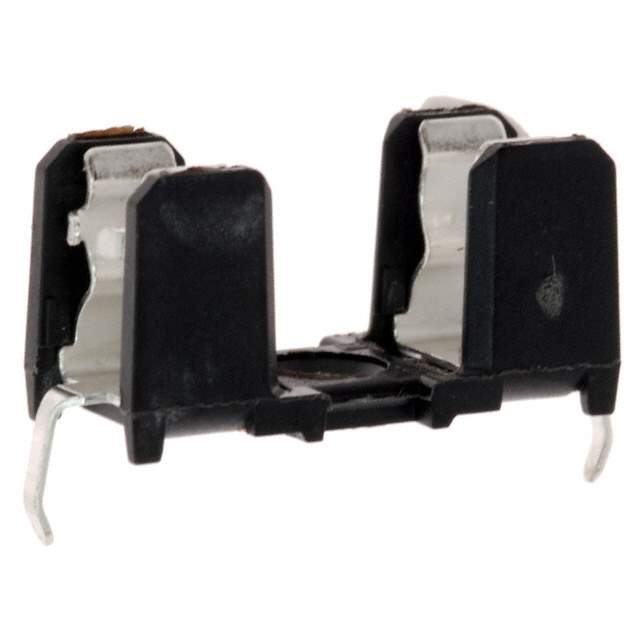

0031.8201 Real Image
Same model may have multiple batches, images only for reference.

0031.8201

Part No 0031.8201
Manufacturer Schurter Inc.
Catalog Fuseholders
Description FUSE BLOK CARTRIDGE 500V 10A PCB
Datasheet
0031.8201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr SCHURTER Inc.
Series OGN
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Size 0.197" Dia x 0.787" L (5mm x 20mm)
Current Rating (Amps) 10 A
For Use With/Related Products 5mm x 20mm
Fuse Type Cartridge
Fuseholder Type Block
Number of Circuits 1
Voltage 500V
Orientation Horizontal
Termination Style PC Pin
Contact Material Copper Alloy
Contact Finish Tin
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 743383-0031.8201
Ultra Librarian 3D Model Ultra Librarian 0031.8201 CAD Model

Description

The 743383-0031.8201 is a fuseholder block designed for holding 5mm x 20mm cartridges.

  • Manufacturer: SCHURTER Inc..
  • Category: Circuit Protection - Fuseholders.
  • Series: OGN.
  • Package: bulk.
  • Termination style: PC pin.
  • Contact finish: tin.
  • Contact material: copper alloy.
  • Voltage rating: 500V.
  • Orientation: horizontal.
  • Standard package quantity: 100 pieces.
  • Mounting type: through-hole.
  • ECCN: EAR99.
  • Risk of counterfeit products: 53%.
  • Status: active.
