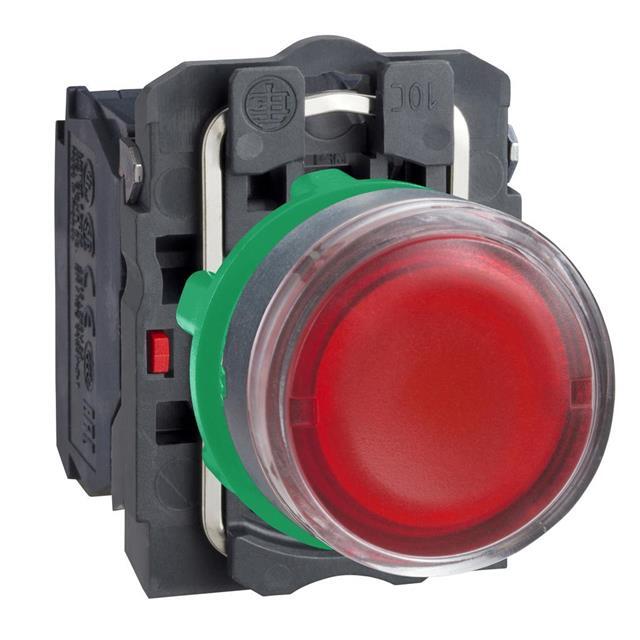

XB5AL73415

Part No XB5AL73415
Manufacturer Schneider Electric
Catalog Pushbutton Switches
Description HARMONY XB5, DOUBLE-HEADED PUSH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Panel Mount, Front
Type Standard
Circuit DPST-NO/NC
Switch Function On-Off, Off-On
Current Rating (Amps) 6A (AC), 550mA (DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 125 V
Actuator Type Rectangular, Button, Flush
Color - Actuator/Cap Green, Red
Termination Style Screw Terminal
Ingress Protection IP67/IP69/IP69K - Dust Tight, Waterproof
Panel Cutout Dimensions Circular - 22.00mm Dia
Temperature Range - Operating -40°C ~ 70°C
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1557724-XB5AL73415
Ultra Librarian 3D Model Ultra Librarian XB5AL73415 CAD Model

Description
