Same model may have multiple batches, images only for reference.

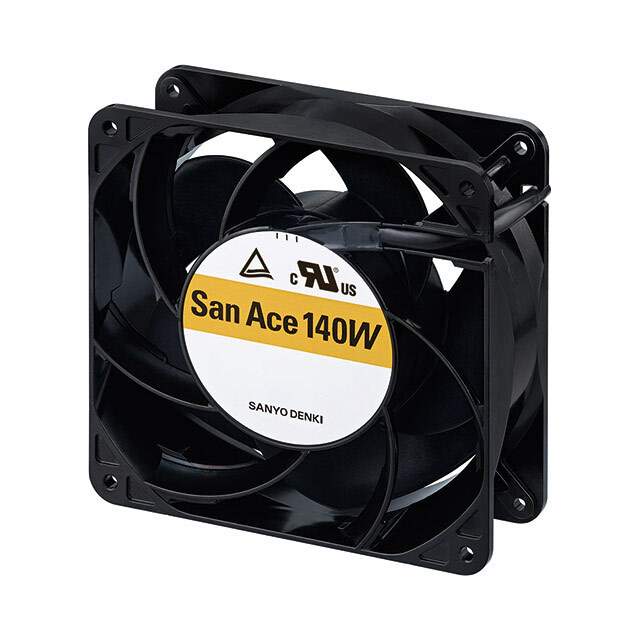

9WL1412P1M001 Real Image
Same model may have multiple batches, images only for reference.

9WL1412P1M001

Part No 9WL1412P1M001
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 140X38MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 140mm L x 140mm H Ball 130.0 CFM (3.64m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 140W
Package Bulk
Voltage - Rated 12VDC
Size / Dimension Square - 140mm L x 140mm H
Width 38.00mm
Air Flow 130.0 CFM (3.64m³/min)
Static Pressure 0.680 in H2O (169.4 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise 46.0dB(A)
Power (Watts) 7.2 W
RPM 3300 RPM
Termination 4 Wire Leads
Ingress Protection IP68 - Dust Tight, Waterproof
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency cURus, TUV
Weight 1.653 lb (750.0 g)
Current Rating (Amps) 0.600A
Voltage Range 10.2 ~ 13.8VDC
Material - Frame Aluminum
Material - Blade Plastic
Lifetime @ Temp. 100000 Hrs @ 60°C
Base Product Number 9WL1412
Standard Package 14
MSL Level Not Applicable
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1350900-9WL1412P1M001
Ultra Librarian 3D Model Ultra Librarian 9WL1412P1M001 CAD Model

Description

The San Ace 140W series DC brushless fan is a high-performance fan that is perfect for thermal management applications.

  • Voltage Rating: 12VDC
  • Power Consumption: 7.2W
  • Air Flow: 130.0 CFM
  • Static Pressure: 0.680 in H2O
  • Features: Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
  • Termination Style: 4 Wire Leads
  • Frame Material: Aluminum
  • Blade Material: Plastic
  • Operating Temperature Range: -4 ~ 158°F
  • Lifetime: 100000 Hrs @ 60°C
  • Length: 140mm
  • Height: 140mm
  • Packaging: Bulk
  • Weight: 1.653 lb (750.0 g)
  • Approvals: cURus, TUV
  • ECCN: EAR99
  • Manufacturer:
