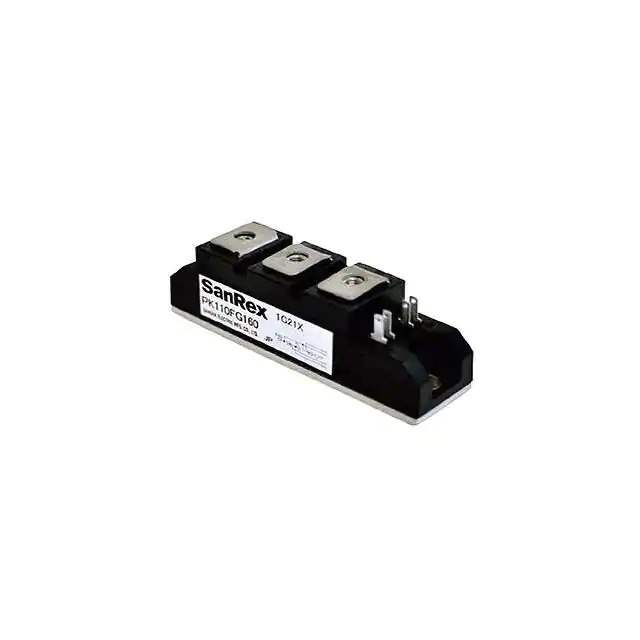

PK90FG160 Real Image
Same model may have multiple batches, images only for reference.

PK90FG160

Part No PK90FG160
Manufacturer SanRex Corporation
Catalog TVS - Thyristors
Description THYRISTOR MODULE 1600V 90A
Datasheet
PK90FG160 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr SanRex Corporation
Package Tray
Product Status Active
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 90 A
Current - On State (It (RMS)) (Max) 140 A
Voltage - Gate Trigger (Vgt) (Max) 3 V
Current - Gate Trigger (Igt) (Max) 50 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 2100A, 2300A
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0040
Win Source Part Number 655896-PK90FG160
Ultra Librarian 3D Model Ultra Librarian PK90FG160 CAD Model

Description

The 655896-PK90FG160 is a high-quality thyristor module designed for use in discrete semiconductor products.

  • Voltage Off State: 1.6 kV
  • Maximum Gate Trigger Voltage: 3 V
  • Current On State (It (AV)): 90 A
  • Current On State (It (RMS)): 140 A
  • Configuration: Series connection of two SCRs and diodes
  • Mounting Type: Chassis mounting
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • Manufacturer: SanRex Corporation
  • Product Status: Active
