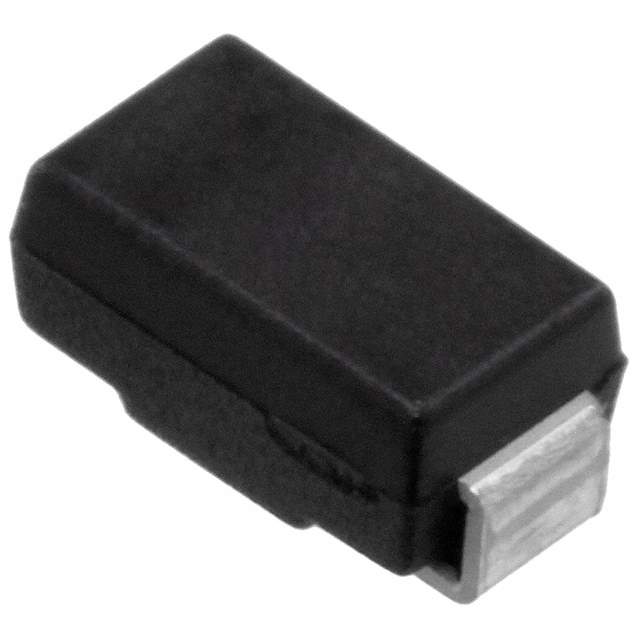

SJPB-H9VL

Part No SJPB-H9VL
Manufacturer Sanken
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 90V 2A SJP
Datasheet
SJPB-H9VL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 90V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 850mV @ 2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 200μA @ 90V
Mounting SMD (SMT)
Case / Package 2-SMD
Operating Temperature - Junction -40°C to 150°C
Win Source Part Number 1096555-SJPB-H9VL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SJPB-H9VL CAD Model

Description

The Sanken SJPB-H9VL is a Schottky diode that is suitable for various applications such as rectification, clamping, and protection circuits.

  • Application: Rectification, Clamping, Protection Circuits
  • Maximum DC Reverse Voltage: 90 V
  • Maximum Average Rectified Current: 2 A
  • Supply and Demand Status: Balanced
  • Package: 2-SMD
  • Operating Temperature Range: -40°C to 150°C
