SJPB-H4VR

Part No SJPB-H4VR
Manufacturer Sanken
Catalog Diodes, Rectifiers - Single

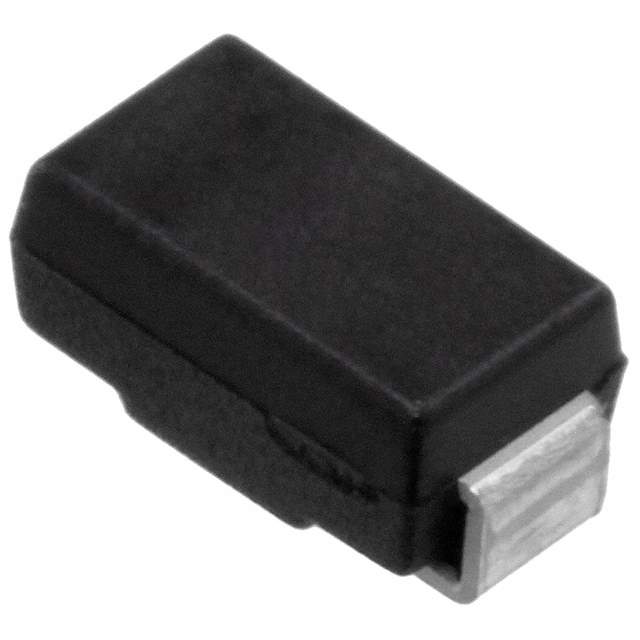

Description DIODE SCHOTTKY 40V 2A SJP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 550mV @ 2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 200μA @ 40V
Mounting SMD (SMT)
Case / Package 2-SMD
Operating Temperature - Junction -40°C to 150°C
Win Source Part Number 1096554-SJPB-H4VR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SJPB-H4VR CAD Model

Description

The Sanken 1096554-SJPB-H4VR is a Schottky diode with a maximum DC reverse voltage of 40V and an average rectified current of 2A.

  • Voltage Forward @ 2A: 550mV
  • Reverse Leakage Current @ 40V: 200μA
  • Packaging: Reel-TR
  • Mounting Type: Surface Mount
  • Category: Discrete Semiconductor Products
  • Popularity: Medium
