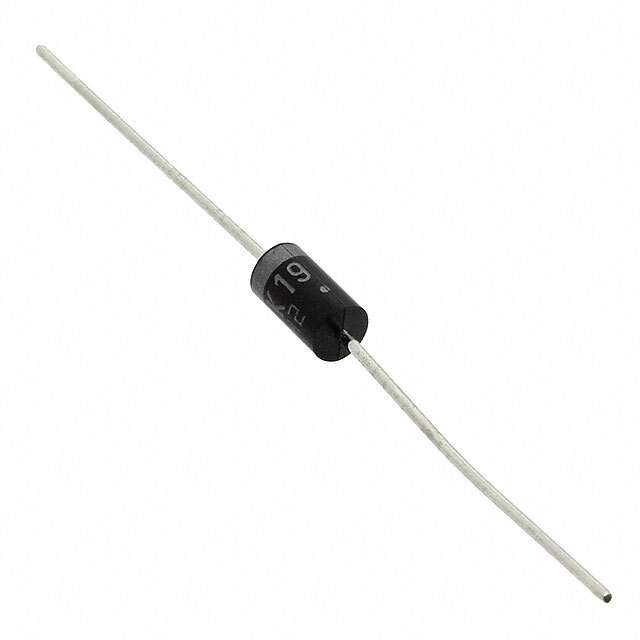

RM 10AV1 Real Image
Same model may have multiple batches, images only for reference.

RM 10AV1

Part No RM 10AV1
Manufacturer Sanken
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 1.2A AXIAL  /  Diode Standard 600 V 1.2A Through Hole Axial
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Sanken
Package Cut Tape (CT),Tape & Box (TB)
Product Status Obsolete
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 1.2A
Voltage - Forward (Vf) (Max) @ If 910 mV @ 1.5 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Mounting Type Through Hole
Package / Case Axial
Supplier Device Package Axial
Operating Temperature - Junction -40°C ~ 150°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names RM 10AV1TR,RM 10AV1-ND,RM 10AV1CT-ND,RM 10AV1TR-ND,RM 10AV1 DK,RM10AV1CT,RM 10AV1DKR-ND,RM10AV1TB,RM10AV1DKRINACTIVE,RM 10AV1TB,RM 10AV1DKRINACTIVE-ND,RM 10AV1DKR,RM 10AV1TB-ND,RM 10AV1CT,RM 10AV1DKRINACTIVE
Standard Package 1,000
Win Source Part Number 1176380-RM 10AV1
Ultra Librarian 3D Model Ultra Librarian RM 10AV1 CAD Model

Description

The 1176380-RM 10AV1 is a standard diode that is ideal for rectification purposes in various electronic devices.

  • Maximum DC Reverse Voltage: 600V
  • Average Rectified Current: 1.2A
  • Voltage Forward @ Maximum Current: 910mV
  • Current Reverse Leakage @ Maximum Voltage: 10μA
  • Package/Case: Axial
  • Mounting: Through Hole
  • Operating Temperature: -40°C to 150°C
  • Supplier: Sanken
  • Packaging: Cut Tape (CT), Tape and Box (TB)
  • Alternative Parts: RM 10AV1 DK, RM-10AV1, RM10AV1
