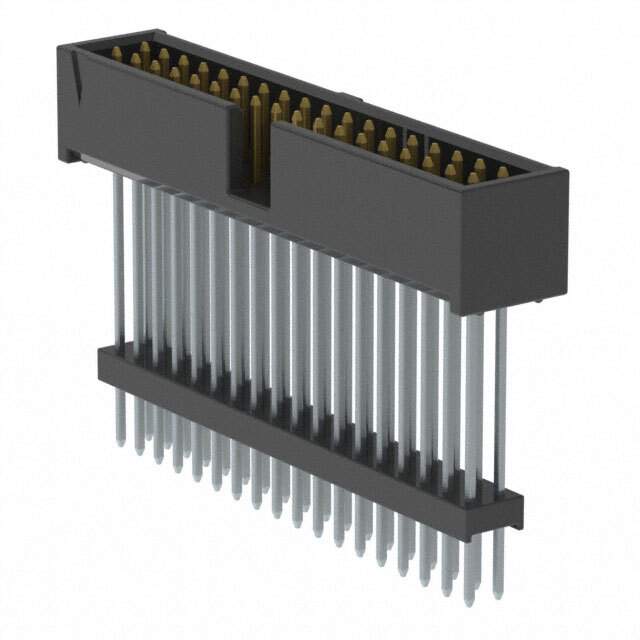

ZSS-118-07-S-D-1088 Real Image
Same model may have multiple batches, images only for reference.

ZSS-118-07-S-D-1088

Part No ZSS-118-07-S-D-1088
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HDR .100" 36POS / Connector Header Through Hole 36 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Flex Stack, ZSS
Package Bulk
Connector Type Header, Elevated
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 36
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.250" (6.35mm)
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length 1.230" (31.24mm)
Insulation Height 1.088" (27.64mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyester, Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number ZSS-118
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1
Win Source Part Number 1054541-ZSS-118-07-S-D-1088
Ultra Librarian 3D Model Ultra Librarian ZSS-118-07-S-D-1088 CAD Model

Description

The ZSS series Flex Stack elevated header connector from Samtec Inc. is the perfect solution for your board to board or cable connectivity needs.

  • Pitch: 0.100" (2.54mm)
  • Design: shrouded 4 wall
  • Positions: 36
  • All Positions: loaded
  • Rows: 2
  • Contact Material: phosphor bronze
  • Contact Finish: gold with a thickness of 30.0μin (0.76μm)
  • Contact Length for Mating: 0.250" (6.35mm)
  • Contact Length for Post: 0.142" (3.60mm)
  • Overall Contact Length: 1.230" (31.24mm)
  • Insulation Height: 1.088" (27.64mm)
  • Current Rating: 3A
  • Operating Temperature: -55°C to 125°C
  • Termination: solder
  • Fastening Type: push-pull
  • Insulation Material: polyester, glass filled
  • Flammability Rating: UL94 V-0
  • Packaging: bulk
