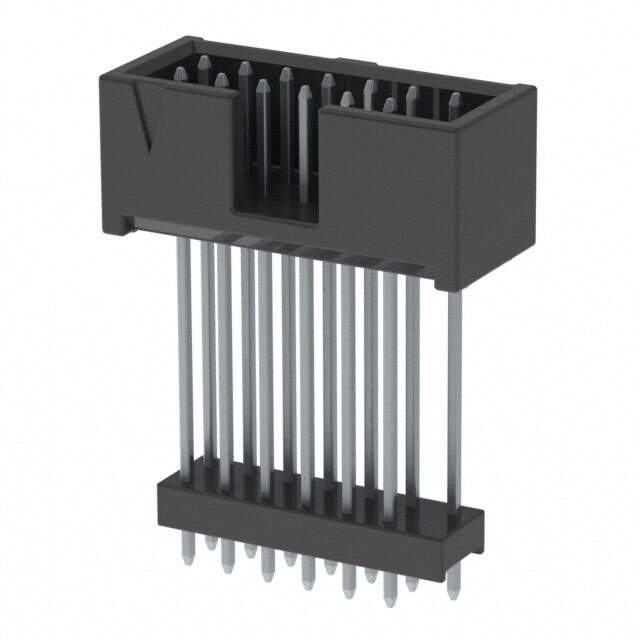

Same model may have multiple batches, images only for reference.

ZSS-107-06-T-D-1020-01

Name: ZSS-107-06-T-D-1020-01
Brand: Samtec Inc.
SKU: 1095996
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZSS-107-06-T-D-1020-01
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR .100" 14POS / Connector Header Through Hole 14 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, ZSS
Package	Bulk
Connector Type	Header, Elevated
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	13
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Contact Length - Post	0.110" (2.79mm)
Overall Contact Length	1.130" (28.70mm)
Insulation Height	1.020" (25.91mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyester, Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	ZSS-107
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1095996-ZSS-107-06-T-D-1020-01
Ultra Librarian 3D Model	Ultra Librarian ZSS-107-06-T-D-1020-01 CAD Model

Alternative Products

Description

The Flex Stack, ZSS series elevated male pin header is a reliable and durable component for your electronic projects.

Positions: 14
Keying Slot: Yes
Type: Header elevated
Contact Material: Phosphor bronze
Voltage Rating: -
Color: Black
Mounting Type: Through-hole
Contact Length-Post: 0.110 inches (2.79mm)
Insulation Height: 1.020 inches (25.91mm)
Temperature Range: -55°C to 105°C
REACH: REACH unaffected
