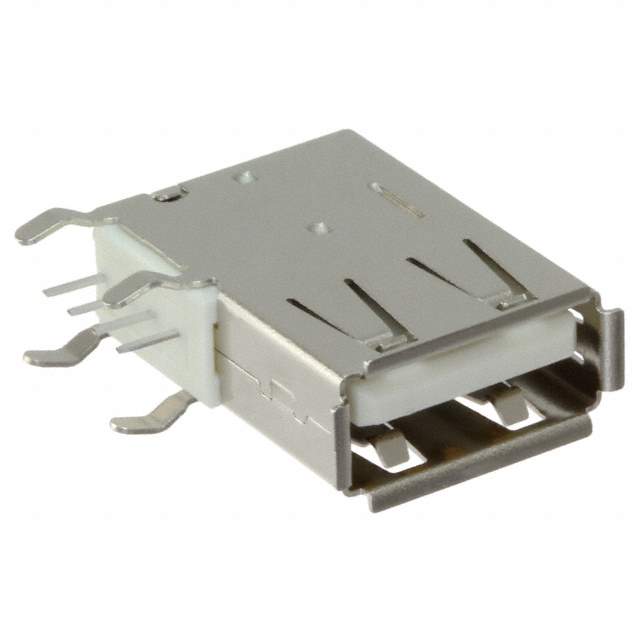

USB-A-S-F-W-VU Real Image
Same model may have multiple batches, images only for reference.

USB-A-S-F-W-VU

Part No USB-A-S-F-W-VU
Manufacturer Samtec Inc.
Catalog USB, DVI, HDMI Connectors
Description USB / Conn USB 2.0 Type A RCP 4 POS 2mm Solder RA Thru-Hole 4 Terminal 1 Port Bulk
Datasheet
USB-A-S-F-W-VU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Packaging Tray
Connector Type USB - A
Number of Contacts 4
Gender Receptacle
Specifications USB 2.0
Mounting Through Hole, Right Angle
Mounting Feature Vertical
Termination Solder
Features Board Lock
Operating Temperature Range -50°C ~ 85°C
Number of Ports 1
Voltage Rating DC 30VAC
Mating Cycles 1500
Contact Finish Gold
Shell/Shielding Material Phosphor Bronze
Material Flammability Rating UL94 V-0
Insulation Color White
Win Source Part Number 798932-USB-A-S-F-W-VU
Popularity Medium
Supply and Demand Status Limited
Family Name USB-A
Introduction Date April 15, 2004
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian USB-A-S-F-W-VU CAD Model

Description

The Samtec Inc. 798932-USB-A-S-F-W-VU connector is a USB-A receptacle.

  • Contacts: Four
  • USB Specification: USB 2.0
  • Temperature Range: -50°C to 85°C
  • Flammability Rating: UL94 V-0
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Mounting: Through-hole, Right Angle
  • Mating Cycle: 1500
  • Family: USB-A
  • Packaging: Tray
