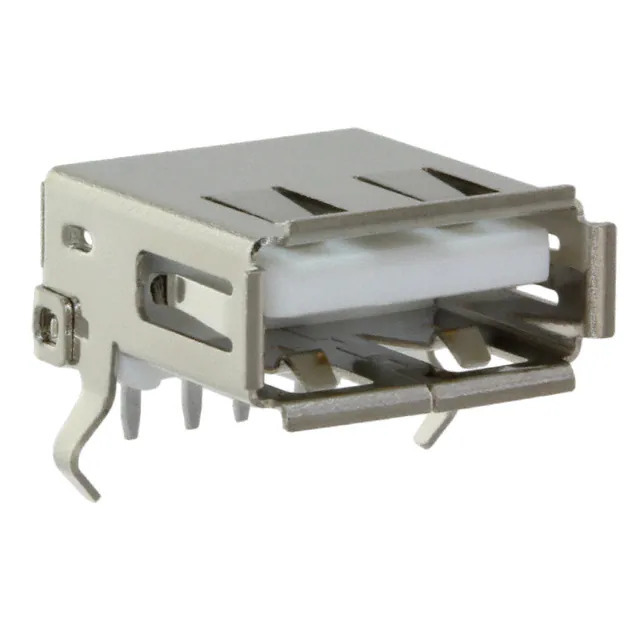

USB-A-S-F-W-TH Samtec Inc.
Same model may have multiple batches, images only for reference.

USB-A-S-F-W-TH

Part No USB-A-S-F-W-TH
Manufacturer Samtec Inc.
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 TYPEA 4POS R/A / USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
Datasheet
USB-A-S-F-W-TH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Samtec Inc.
Series USB-A
Package Bulk
Product Status Active
Connector Type USB-A (USB TYPE-A)
Number of Contacts 4
Gender Receptacle
Specifications USB 2.0
Mounting Type Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Lock
Ingress Protection -
Temperature Range - Operating -50°C ~ 85°C
Number of Ports 1
Current Rating (Amps) -
Voltage - Rated 30VAC
Mating Cycles 1500
Shielding -
Contact Finish Gold
Shell/Shielding Material Brass
Material Flammability Rating UL94 V-0
Insulation Color White
Base Product Number USB-A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364377-USB-A-S-F-W-TH
Ultra Librarian 3D Model Ultra Librarian USB-A-S-F-W-TH CAD Model

Description

The Samtec Inc. USB-A series is a USB-A (USB TYPE-A) connector assembly. It is a USB, DVI, HDMI connector in the category of connectors and interconnects.

  • Series: USB-A
  • Type: USB-A (USB TYPE-A)
  • Category: USB, DVI, HDMI
  • Mounting Type: Through Hole, Right Angle
  • Voltage Rated: 30VAC
  • Gender: Receptacle
  • Mounting Feature: Horizontal
  • Number of Contacts: 4
  • Number of Ports: 1
  • Contact Finish: Gold
  • Insulation Color: White
  • Mating Cycles: 1500
  • Status: Active
