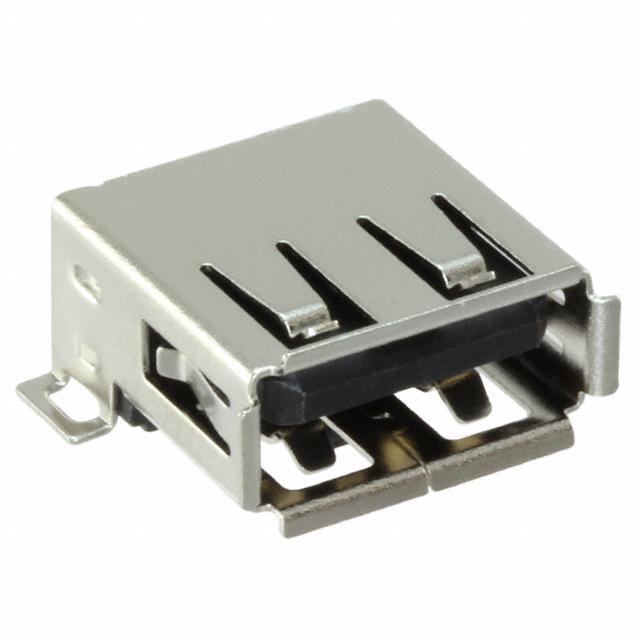

Same model may have multiple batches, images only for reference.
USB-A-S-F-B-SM2-TR Samtec Inc.
Same model may have multiple batches, images only for reference.

USB-A-S-F-B-SM2-TR

Part No USB-A-S-F-B-SM2-TR
Manufacturer Samtec Inc.
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 TYPEA 4P SMD RA
Datasheet
USB-A-S-F-B-SM2-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Samtec Inc.
Series USB-A
Package Tape & Reel
Product Status Active
Connector Type USB-A (USB TYPE-A)
Number of Contacts 4
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Guide, Solder Retention
Temperature Range - Operating -50°C ~ 85°C
Number of Ports 1
Voltage - Rated 30VAC
Mating Cycles 1500
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number USB-A
Standard Package 250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 533948-USB-A-S-F-B-SM2-TR
Ultra Librarian 3D Model Ultra Librarian USB-A-S-F-B-SM2-TR CAD Model

Description

The USB-A-S-F-B-SM2-TR is a USB connector assembly manufactured by Samtec Inc.

  • Series: USB-A
  • Application: USB 2.0
  • Connector Type: USB-A (USB TYPE-A) Receptacle
  • Termination: Solder
  • Contacts: Four
  • Mounting: Surface Mount, Right Angle
  • Voltage Rating: 30VAC
  • Mating Cycle Durability: 1500 cycles
  • Material: Copper Alloy
  • Flammability Rating: UL94 V-0
