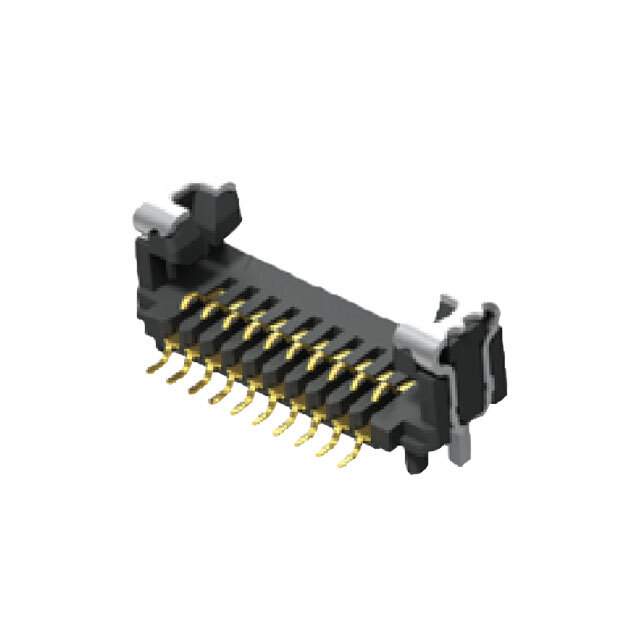

UCC8-010-1-H-S-1-A Real Image1 UCC8-010-1-H-S-1-A Real Image2
Same model may have multiple batches, images only for reference.
UCC8-010-1-H-S-1-A Real Image1 UCC8-010-1-H-S-1-A Real Image2
UCC8-010-1-H-S-1-A Real Image1 UCC8-010-1-H-S-1-A Real Image2
Same model may have multiple batches, images only for reference.

UCC8-010-1-H-S-1-A

Part No UCC8-010-1-H-S-1-A
Manufacturer Samtec Inc.
Catalog Pluggable Connectors
Description CONN MICRO FLYOVER RCPT 10P SMD / 10 Position Micro Flyover Receptacle Connector Solder Surface Mount, Through Hole
Datasheet
UCC8-010-1-H-S-1-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors>Pluggable Connector Assemblies
Mfr Samtec Inc.
Series Firefly™
Package Tape & Reel
Connector Style Receptacle
Connector Type Micro Flyover
Number of Positions 10
Mounting Type Surface Mount, Through Hole
Termination Solder
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number UCC8-010
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Standard Package 850 pcs
Win Source Part Number 1383783-UCC8-010-1-H-S-1-A
Ultra Librarian 3D Model Ultra Librarian UCC8-010-1-H-S-1-A CAD Model

Description

The 1383783-UCC8-010-1-H-S-1-A is a pluggable connector assembly designed for various interconnect applications.

  • Manufacturer: Samtec Inc.
  • Series: Firefly™
  • Feature: Board Guide
  • Connector Type: Micro Flyover
  • Termination: Solder
  • Contact Finish: Gold @ 30.0μin (0.76μm)
  • Packaging: Tape and Reel
  • Standard Package: 850 pcs
  • Mounting Options: Surface or Through Hole
