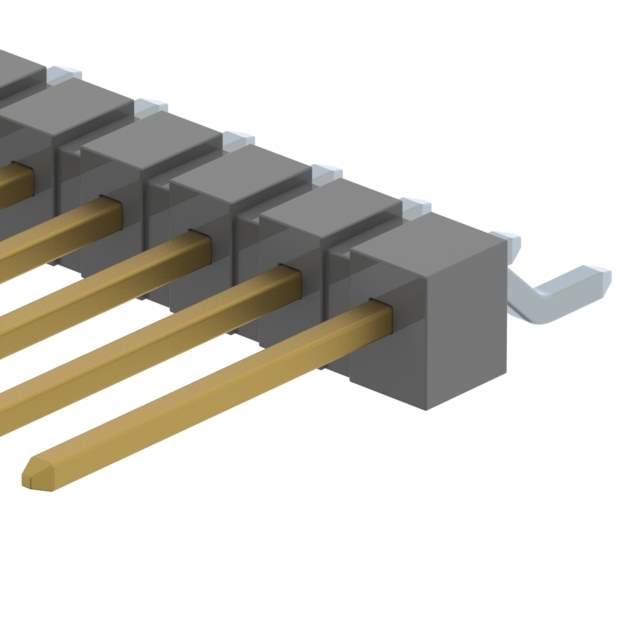

TSM-111-03-L-SH Real Image
Same model may have multiple batches, images only for reference.

TSM-111-03-L-SH

Part No TSM-111-03-L-SH
Manufacturer Samtec Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER SMD R/A 11POS 2.54MM / Connector Header Surface Mount, Right Angle 11 position 0.100" (2.54mm)
Datasheet
TSM-111-03-L-SH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TSM
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 11
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.420" (10.67mm)
Insulation Height 0.120" (3.05mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number TSM-111
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 20
Win Source Part Number 1115081-TSM-111-03-L-SH
Ultra Librarian 3D Model Ultra Librarian TSM-111-03-L-SH CAD Model

Description

The Samtec Inc. TSM-111-03-L-SH is a rectangular connector that comes in a tube package.

  • Positions: 11
  • Pins: Male
  • Pitch: 0.100" (2.54mm)
  • Contact Finish Thickness: 10.0μin (0.25μm)
  • ECCN: EAR99
  • Popularity: Medium
  • Temperature Range: -55°C to 125°C
