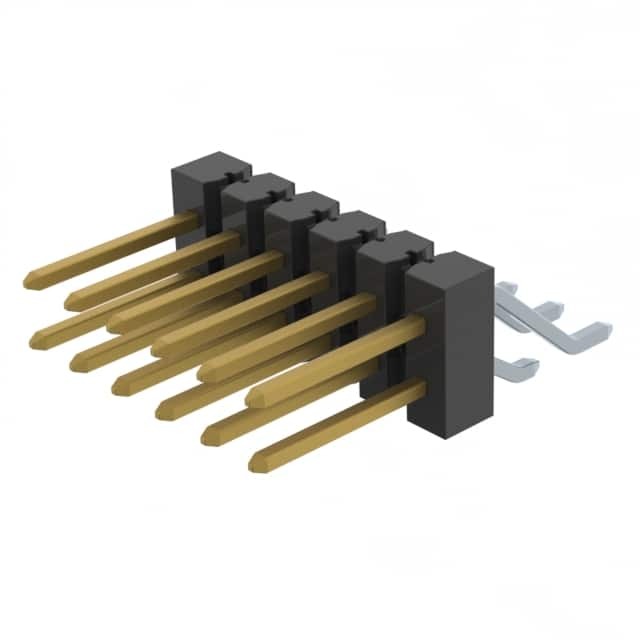

TSM-106-02-L-DH

Name: TSM-106-02-L-DH
Brand: Samtec Inc.
SKU: 937725
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSM-106-02-L-DH
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 12POS 2.54MM / Connector Header Surface Mount, Right Angle 12 position 0.100" (2.54mm)
Datasheet	TSM-106-02-L-DH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSM
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.320" (8.13mm)
Insulation Height	0.240" (6.10mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSM-106
Standard Package	37 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	937725-TSM-106-02-L-DH
Ultra Librarian 3D Model	Ultra Librarian TSM-106-02-L-DH CAD Model

Alternative Products

Description

The TSM-106-02-L-DH is a 12-position male pin header from Samtec Inc.

Series: TSM
Application: Board-to-Board or Cable
Fastening Type: Push-Pull
Termination: Solder
Pitch: 0.100" (2.54mm)
Contact Finish: Gold
Contact Material: Phosphor Bronze
Insulation Material: Black Liquid Crystal Polymer (LCP)
Mounting Type: Surface Mount
Shrouding: Unshrouded
Temperature Range: -55°C to 125°C
Voltage: 275VAC
Product Status: Active
Standard Package: 37 pcs
Flammability Rating: UL94 V-0
