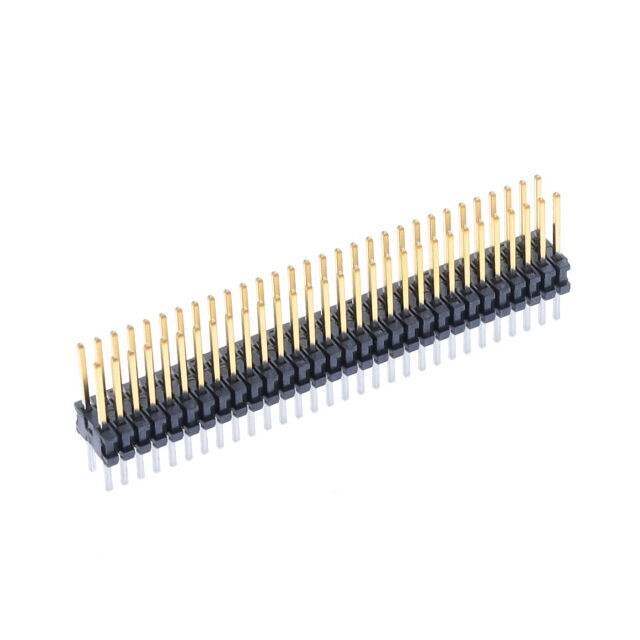

Same model may have multiple batches, images only for reference.

TMS-130-01-S-D

Name: TMS-130-01-S-D
Brand: Samtec Inc.
SKU: WS1330031
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMS-130-01-S-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.050" (1.27MM) MICRO HEADER
Datasheet	TMS-130-01-S-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	60
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.450" (11.43mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	5A per Contact
Ultra Librarian 3D Model	Ultra Librarian TMS-130-01-S-D CAD Model

Description

Connector Header Through Hole 60 position 0.050" (1.27mm)
